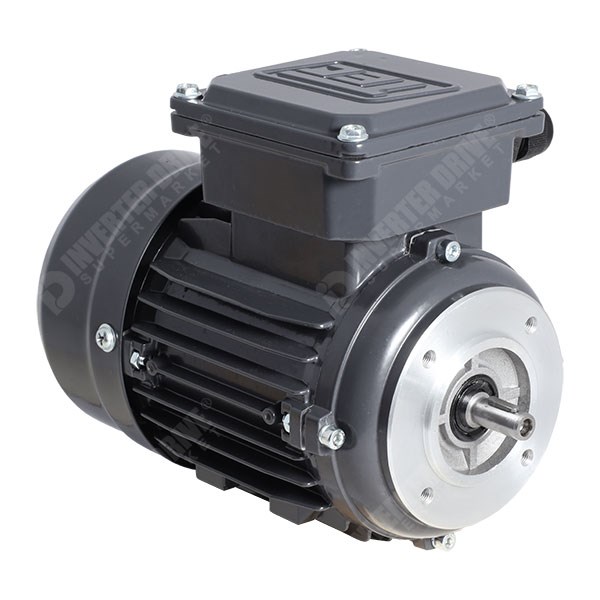

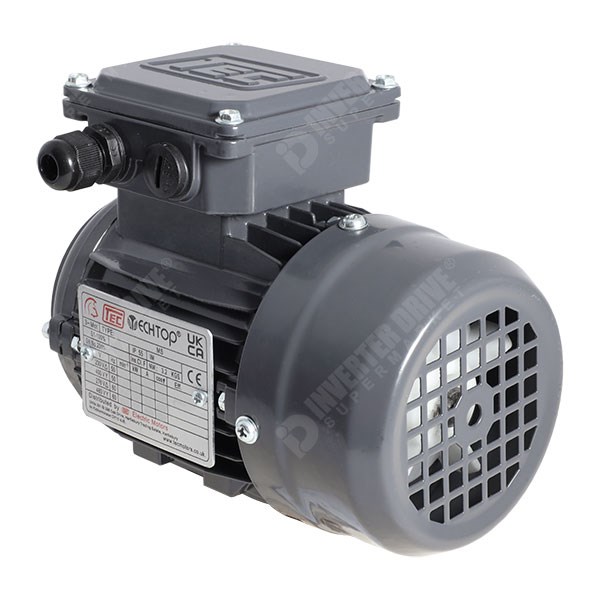

TEC Electric - 0.12kW 3ph 4 Pole Face Mounting 56 Frame AC Motor for 230V or 400V 3 phase supply. Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.
Fixed mains supply output: 0.12kW (0.16HP) x 1360RPM at 230V or 400V x 50Hz 3ph.
Inverter Supply Output: 15:1 Speed Control range from 136RPM to 2040RPM for 5Hz to 75Hz control with suitable de-rating at the lower speeds. (75Hz is the maximum continuous output with normal overload capability).
Full Load Current - 0.95A at 230V, or 0.55A at 400V.
Power Factor is 0.64 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links 'two at one side' for 400V 'Star' connection.
Terminal box has 1 x M20 Gland.
For 56 frame motors the feet (if supplied) can be removed or positioned opposite the terminal box. Consider a larger frame size or alternative mounting configuration (B14 Face or B5 Flange) if your application requires the terminal box to be positioned on either side of the motor.
117mm Wide x 196mm Long x 156mm high overall in its IP55 enclosure.
Face mount on M5 tapped holes at 65mm pcd with 50mm diameter register in the 80mm diameter flange.
Shaft is 9mm dia x 20mm with 3mm wide key.
Weight is 3.2kg.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.
MS 563-4-B14 (56M4C-TECA) - Was 0.1243TECAB14 56
For Variable Speed use:-
Part Time Output when Inverter powered is...
0.42Nm - 0.12kW (0.16HP) x 2720RPM at 100Hz
0.84Nm - 0.12kW (0.16HP) x 1360RPM at 50Hz
0.84Nm - 0.06kW (0.08HP) x 680RPM at 25Hz
0.84Nm - 0.012kW (0.016HP) x 136RPM at 5Hz
Continuous Output when Inverter powered is...
0.56Nm - 0.12kW (0.16HP) x 2040RPM at 75Hz
0.84Nm - 0.12kW (0.16HP) x 1360RPM at 50Hz
0.84Nm - 0.06kW (0.08HP) x 680RPM at 25Hz
0.84Nm - 0.012kW (0.016HP) x 136RPM at 5Hz
Download the full Manual and Dimensions from the links below:-
