TEC - 230V Single Phase Motor 0.09kW (0.12HP) Cap Run 4P 56F Flange

0.0941TPC B5

Order Code: 21061

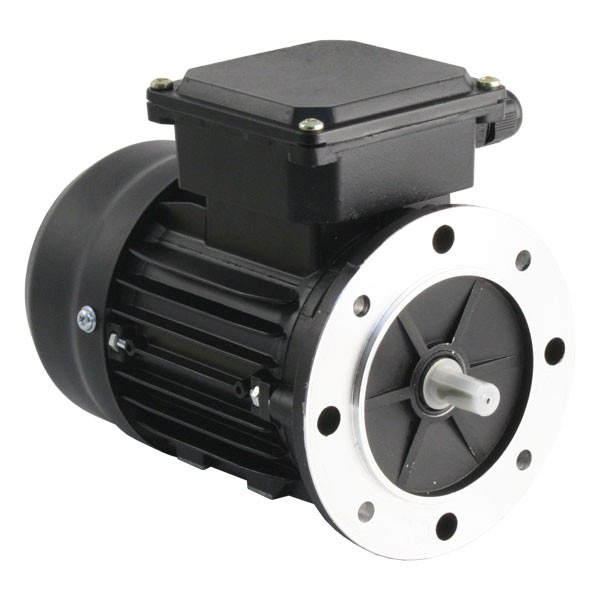

Photo of TEC - 230V Single Phase Motor 0.09kW (0.12HP) Cap Run 4P 56F Flange
Obsolete Product
This item is now obsolete. Alternatives may be available - see linked products below.

Brand: TEC Electric Motors, Range: MY Single Phase Cap Run

TEC 56 Frame - 0.09kW (0.12HP) Single Phase Capacitor Run 4 Pole AC Motor for use at fixed Speed.

Use with a fixed frequency 1ph input at 230V x 50Hz for 0.09kW x 1400RPM.

Low starting torque at 70%.
Full Load Current - 0.8A.
Starting Current is 3A.

For 56 frame motors the feet (if supplied) can be removed or positioned opposite the terminal box. Consider a larger frame size or alternative mounting configuration (B14 Face or B5 Flange) if your application requires the terminal box to be positioned on either side of the motor.

Mounting is B5 Flange mounting.
Flange mount on 4 x 7mm holes at 100mm PCD with 80mm diameter spigot in the 120mm diameter flange.
Shaft is 9mm dia x 20mm long with 3mm keyway.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Full part number is - 0.0941TPC B5

Download the dimension drawing and full Manual from the link below:
