Axem MC19P-A8424 DC Disc Armature Servo Motor

Name: Axem MC19P-A8424 DC Disc Armature Servo Motor
Brand: Parker Parvex
SKU: 30583
Availability: Discontinued

MC19P A8424

Order Code: 30583

Obsolete Product

This item is now obsolete. Alternatives may be available - see linked products below.

Brand: Parker Parvex, Range: AXEM DC Servo Motors

Details

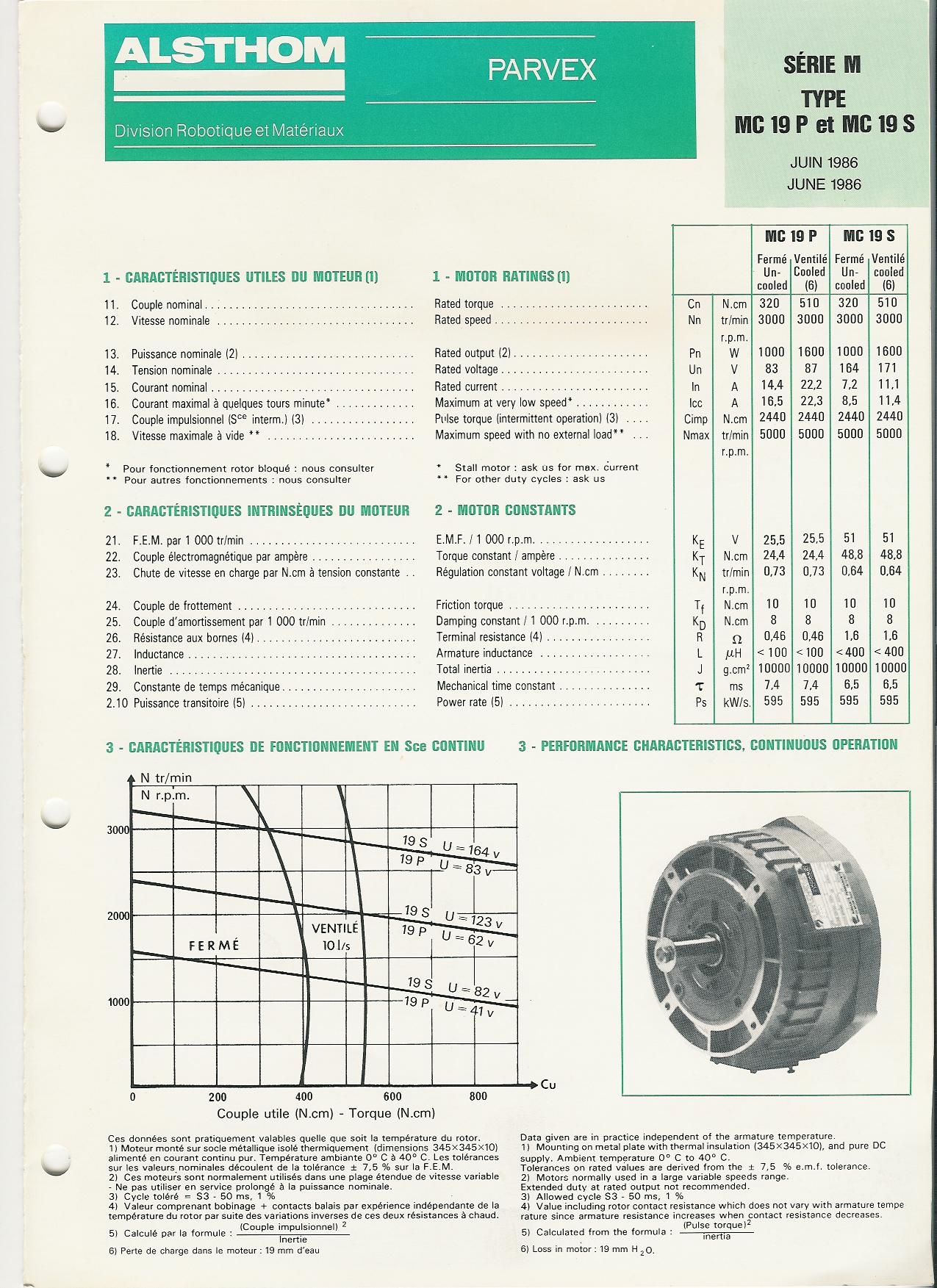

Axem MC19P option A8424 Low Inertia Disc Armature DC Servo Motor and Tachogenerator.

Power Output: 1kW
Torque: 3.2Nm Nominal.
Speed: 3000RPM.
Voltage: 83V DC.
Current: 14.4A at full load.

Enclosure Rating: IP44.
Cooling: Totally enclosed surface cooled.
Tachogenerator: 6V/1000RPM Disc tachogenerator included.

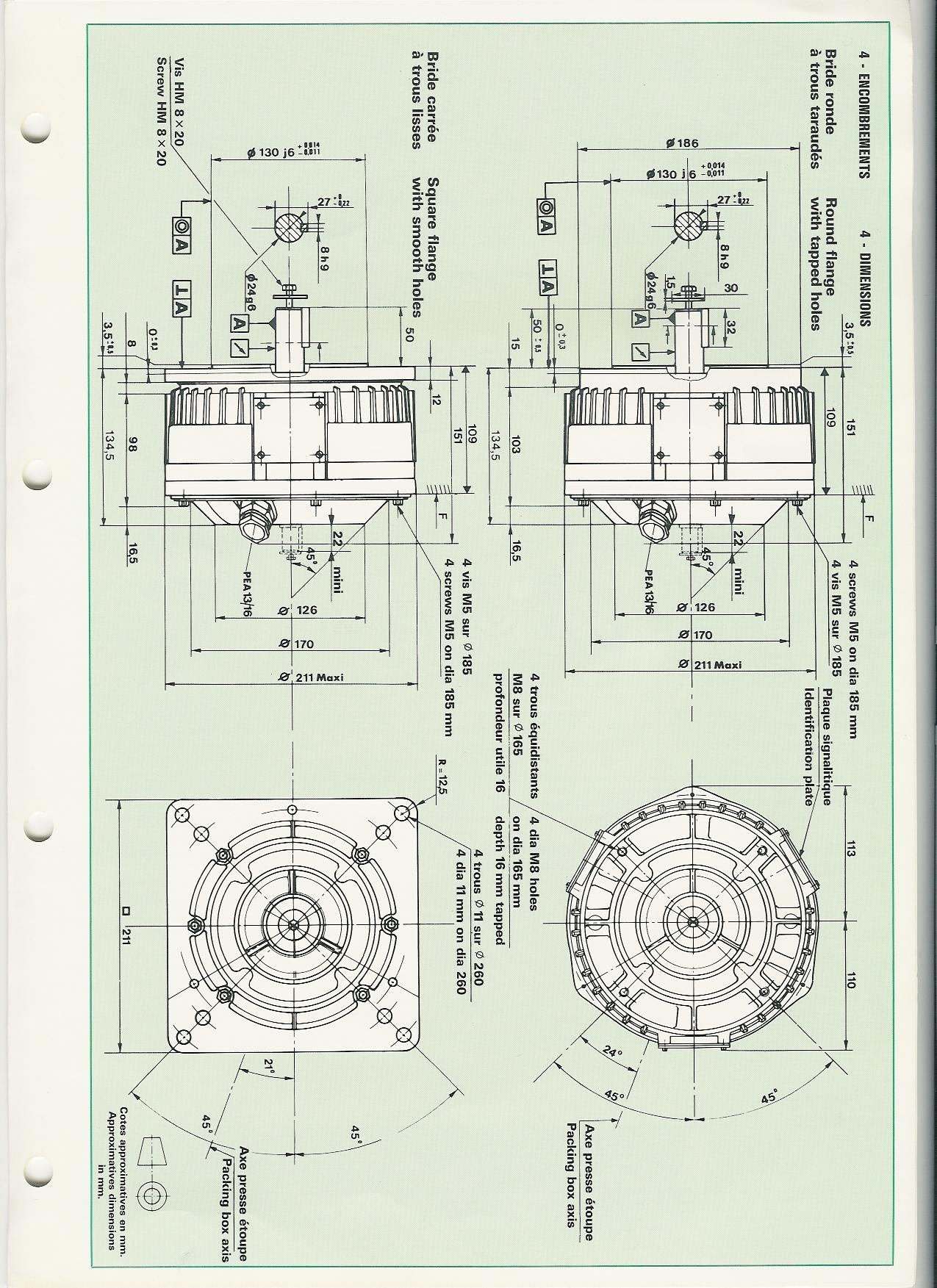

Dimensions: 211mm diameter x 134.5mm long (excluding the main shaft).
Mounting: Flange mount on 4 x M8 tapped holes at 165mm pcd with 130mm diameter register in the round flange.
Shaft: 24mm dia x 50mm with 8mm x 7mm x 32mm long key.
Inertia: 0.001kgm2

Parvex Part Number: MC19P A8424 (MC19PA8424).

Made by Parvex (Axem) and sold under many other names including nameplates marked:- BBC (Brown Boveri Company), ABB, ASEA, GEC Alsthom, CEM, Kollmorgan, Mattke and Alstom.
