Parvex NX210 AC Servo Motor - 0.8Nm x 4000RPM at 230V, 0.6Nm x 6000rpm at 400V, Smooth Shaft

Name: Parvex NX210 AC Servo Motor - 0.8Nm x 4000RPM at 230V, 0.6Nm x 6000rpm at 400V, Smooth Shaft
Brand: Parker Parvex
SKU: 21109
Availability: Discontinued

NX210EAT-R7000

Order Code: 21109

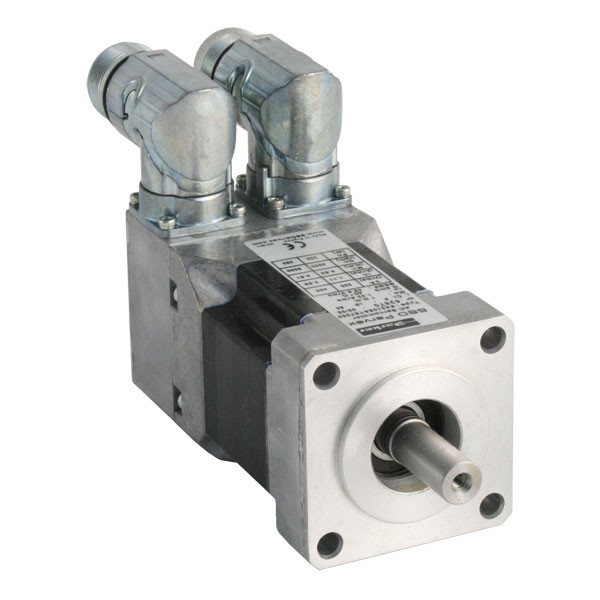

Photo of Parvex NX210 AC Servo Motor - 0.8Nm x 4000RPM at 230V, 0.6Nm x 6000rpm at 400V, Smooth Shaft

Obsolete Product

This item is now obsolete. Alternatives may be available - see linked products below.

Brand: Parker Parvex, Range: NX AC Servo Motors

Details

Parker SSD Parvex NX Series AC Servo Motor (NX210EAT-R7000). Resolver fitted and smooth shaft. IP64 rated.

0.6Nm Rated Torque continuous at 6000RPM for 0.8A x 400V
0.8Nm Rated Torque continuous at 4000RPM for 1.1A x 230V
1.0Nm Torque continuous at 0RPM for 1.3A
Inertia is 0.38kg/cm²

Dimensions (see linked files below for drawing):-
Body: 56.5mm Square x 120mm Length
Shaft: 11mm Dia x 25mm Length.
Mounting: Flange mount on 5.5mm dia holes at 63mm pcd with 40mm dia spigot
Weight: 1.3kg.

For other shaft, IP ratings and braking options together with cables and suitable drives - see linked products below.

Manufacturers Part Number - NX210EAT-R7000

Made by Parvex and Parker-SSD Drives and the same as items sold under many other names including nameplates marked:- Parvex, GEC, Alstom and Eurotherm Drives.

Download the Parvex NX210EAT Datasheet and Drawing using the links below:-
