Radio Energie 1024ppr TTL Servo Mounting Encoder Kit, 10mm Solid Shaft, M23 Connector

Name: Radio Energie 1024ppr TTL Servo Mounting Encoder Kit, 10mm Solid Shaft, M23 Connector
Brand: Radio-Energie
SKU: 37939
Price: 474.00 GBP
Availability: OutOfStock

RCI58-F-10-U-G2-9-1024-G6-R + BRD58

Order Code: 37939

Photo of Radio Energie 1024ppr TTL Servo Mounting Encoder Kit, 10mm Solid Shaft, M23 Connector

Available to Order

Delivery normally 2 weeks

£395.00

(excl. VAT)

£474.00

(inc. VAT )

Price break

per unit

£395.00

£385.13

10+

£375.25

Condition: New with Warranty
Brand: Radio-Energie, Range: Encoders

Details

Radio Energie Servo Mounting Full Shaft Incremental Optical Encoder kit at TTL level.

Kit Comprises: RCI58F encoder and loose BRD58 servo mounting flange and screws.
PPR: 1024ppr default, programmable.
Signals: TTL, A+, B+, Z+, A-, B-, Z- push/pull at 5V.
Supply: 4.75V to 30V DC.
Pulse Frequency: 100kHz maximum.
Maximum Speed: Limited to 5,850RPM by maximum pulse frequency, (12000RPM.mechanical).
Load Current: 40mA avarage per channel.Current Consumption: less than 75mA at no load.
Connection: 12 pin M23 connector. Male, radial.

Dimensions: 58mm diameter x 46.5mm deep excluding the shaft and connector.
Shaft: 10mm diameter x 19mm with locating flat.
Mounting: Via 3 servo clamps around 58mm diameter servo flange with 31.75mm doameter register.
Weight: 400g
Inertia: 50gcm2.
Driving Torque: 1.2Ncm at working temperature.
Shaft Load: Maximum 20N Axial, 50N Radial.
Protection Rating: IP65.
Customs code: 8503009999

Part number: RCI58-F-10-U-G2-9-1024-G6-R + BRD58 (RC158-F-10-U-G2-9-1024-G6-R + BRD58).

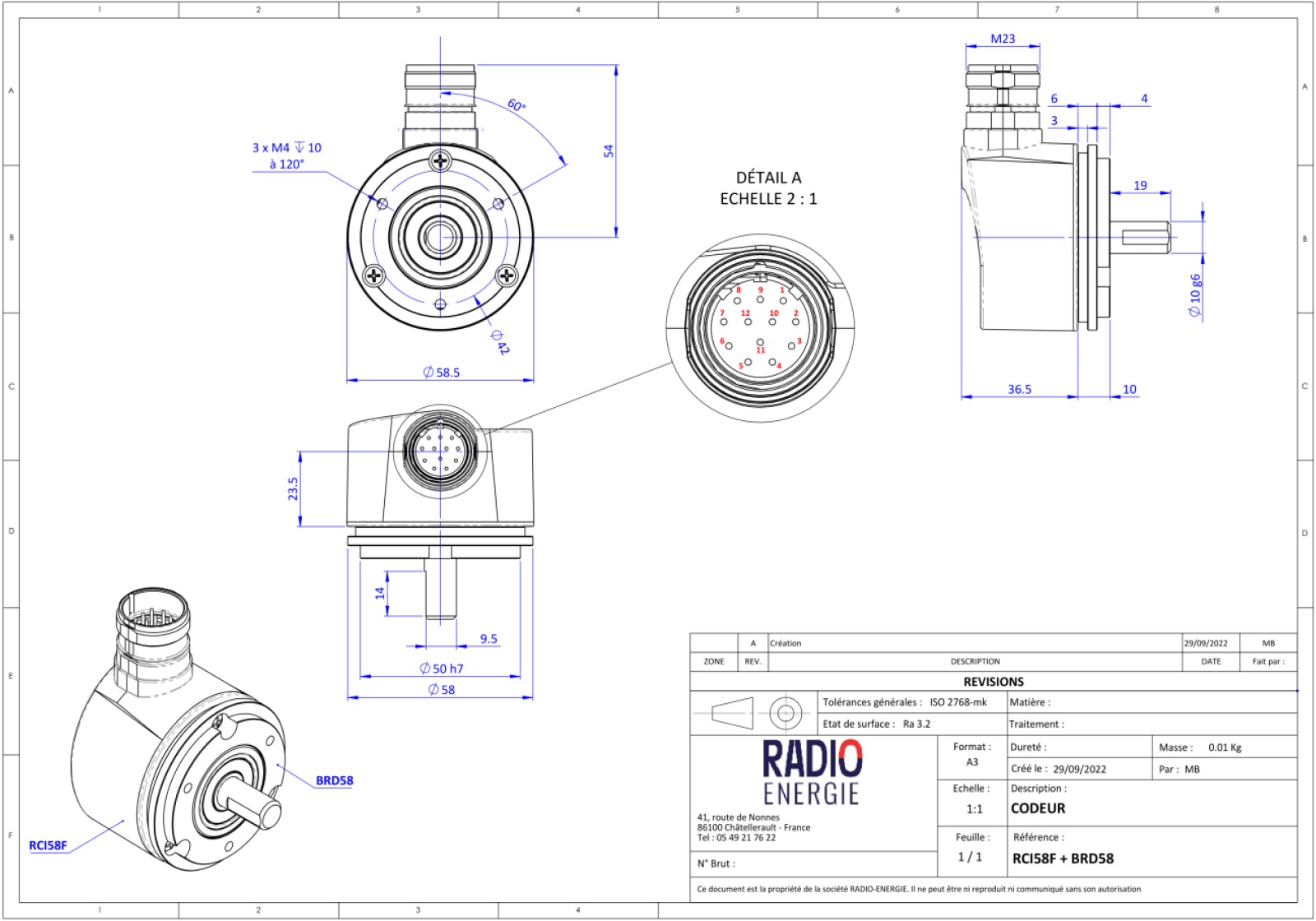

Download the drawing and data sheet from the links below...
