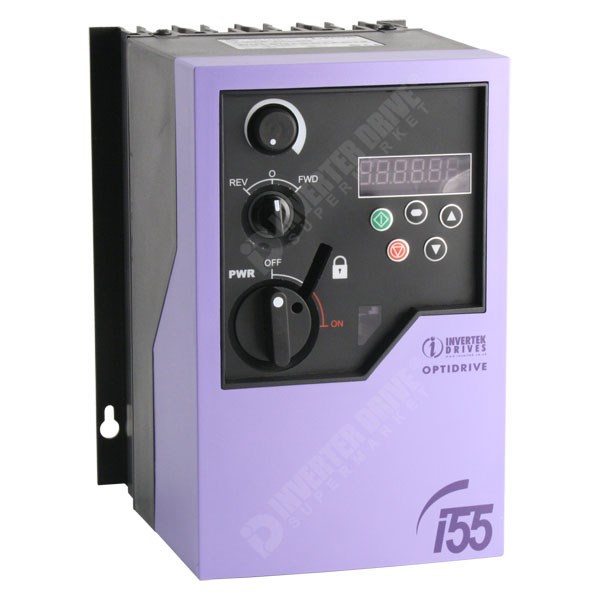

Invertek Optidrive E2 IP55 - 1.5kW 400V - AC Inverter Drive Speed Controller (Switched)

ODE-2-14150-3KA1S

Order Code: 20145
Obsolete Product
This item is now obsolete. Alternatives may be available - see linked products below.

Brand: Invertek, Range: Optidrive E2

Invertek Optidrive E2 IP55 AC Frequency Inverter for 1.5kW (2HP) or 1.1kW (1.5HP) 400V 3 Ph motor in VxF control to 4.1A. Simple to set up for a standard AC Induction motor.

From October 2014 the IP55 rating is no longer available and has been replaced with an improved IP66 model - see linked products below for equivalent.

IP55 / NEMA 12 enclosure for harsh environments. Switched - Includes Enable Switch, Local Potentiometer for speed control and Drive Fwd/Rev switch.

Frame 1 Size - 140mm Wide x 162mm Deep x 200mm High, IP55

Overload - 150% Output Current (6.15A) x 60 seconds, 175% x 2 seconds
Speed Control Range - 0/500Hz.
Braking - None.

Features - 2 Analogue/Digital Inputs, 2 x Digital Inputs (4 total), 1 x Analogue/Digital Output, 1 Relay Contact set.
Parameter setting via integral keypad, remote keypad (optional) or from a PC via 'OptiStore' software (RS485 to USB cable required - see linked products below)
Parameter setting from compatible Windows based PDA or Smartphone cable-free via 'OptiWand' software

EMC Filters to EN61800-3 category C2 for 1st environments (domestic) for screened cable lengths of up to 5m (add Optifilter for lengths above 5m).
EMC Filters to EN61800-3 cat C3 (2nd environment - Industrial) for screened cable lengths of up to 25m.

Input Current - 5.4A.
Input Voltage - 380-480V ± 10% Three Phase

Wall mount using 2 x M4 screw fixings at rear.
4 x Gland Holes (3 x dia 22mm, 1 x 17mm in cover).
Rated at 40°C Ambient.
Ventilation space required above and below - 150mm.
Ventilation space at sides - 0mm (Drives can be mounted side by side).

Full part number is - ODE-2-14150-3KA1S

Made in the UK.
Customs Tariff Code is 85044084

Download the Invertek Optidrive Manual from the link below:-
