Yaskawa GA500 VSD Product Range available from stock

Compact motor control for machinery, fans and pumps

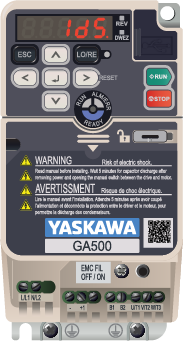

The Yaskawa GA500 is a compact, versatile variable speed drive designed for reliable control of AC motors across a wide range of industrial applications. Combining straightforward setup with flexible motor-control options, the GA500 is well suited to machinery, conveyors, fans, pumps and other constant or variable-torque loads.

Available in 230 V single-phase and 400 V three-phase models, the range covers motor ratings from 0.25 kW to 22 kW, with higher ratings available for variable-torque applications. Its compact construction, integrated keypad and flexible control terminals make the GA500 a practical choice for both new installations and drive replacements.

Manufactured in the UK

Need help selecting the correct Yaskawa GA500? View the technical data, dimensions, wiring information and individual product listings below, or contact Inverter Drive Supermarket ([email protected]) for assistance with drive sizing and availability.

Use the links below to jump to the information you need.

Prices and availability
Rating Details 230 Vac single-phase
Rating Details 400 Vac three-phase
Dimensions up to 4 kW
Dimension Details 5.5 kW to 22 kW
Keypad functionality
Control terminal details, I/O and default wiring
Options and accessories
Manuals and downloads
Part Number Description

Select your Yaskawa GA500 VSD: prices and availability

Select a motor rating or part number to view the individual product page, net price and live stock availability.

230 V single-phase models

0.25 kW / 0.37 kW

0.55 kW / 0.75 kW

0.75 kW / 1.1 kW

1.5 kW / 2.2 kW

2.2 kW / 3 kW

4 kW

400 V three-phase models

0.55 kW / 0.75 kW

1.1 kW / 1.5 kW

1.5 kW / 2.2 kW

2.2 kW / 3 kW

3 kW / 4 kW

4 kW / 5.5 kW

5.5 kW / 7.5 kW

7.5 kW / 11 kW

11 kW / 15 kW

15 kW / 18.5 kW

18.5 kW / 22 kW

22 kW / 30 kW

230 Vac single-phase ratings: 0.25 kW to 4 kW

GA500 drives are dual rated according to the application. Variable-torque ratings are normally used for fan and centrifugal-pump loads. The GA500 is supplied with the constant-torque rating selected by default; change parameter C6-01 from 0 to 1 to select variable torque. Always check the voltage rating on the unit nameplate before installation. Applying 400 V to a 230 V unit will cause damage.

Rating table: 230 Vac 0.25kW to 4kW
Overload	kW rating	0.25 kW	0.37 kW (0.4kW)	0.55 kW	0.75 kW	1.1 kW	1.5 kW	2.2 kW	3 kW	4 kW
Constant Torque (150%)	Output current	1.6 A	-	3 A	5 A	-	8 A	11 A	-	17.6 A
Constant Torque (150%)	Frame Ref	1c	-	1g	2i	-	2j	3d	-	4
Variable Torque (110%)	Output current	-	1.9 A	-	3.5 A	6 A	-	9.6 A	12.2 A	17.6 A
Variable Torque (110%)	Frame Ref	-	1c	-	1g	2i	-	2j	3d	4

400 Vac three-phase ratings: 0.55 kW to 22 kW (30 kW variable torque)

GA500 drives are dual rated according to the application. Variable-torque ratings are normally used for fan and centrifugal-pump loads. The GA500 is supplied with the constant-torque rating selected by default; change parameter C6-01 from 0 to 1 to select variable torque.

Rating table: 400 Vac 0.55 kW to 22 kW
Overload	kW rating	0.55 kW	0.75 kW	1.1 kW	1.5 kW	2.2 kW	3 kW	4 kW	5.5 kW	7.5 kW	11 kW	15 kW	18.5 kW	22 kW	30 kW
Constant Torque (150%)	Output current	1.8 A	-	3.4 A	4.8 A	5.6 A	7.3 A	9.2 A	TBC	TBC	TBC	TBC	TBC	TBC	-
	Frame Ref	2f	-	2i	2j	2j	2j	3c	5	5	6	6	7	7	-
Variable Torque (110%)	Output current	-	1 A	-	4.1 A	5.4 A	7.1 A	8.9 A	TBC	TBC	TBC	TBC	TBC	TBC	TBC
	Frame Ref	-	2f	-	2i	2j	2j	2j	3c	5	5	6	6	7	7

Overall dimensions

All units are IP20 and suitable for panel mounting. The units cannot be DIN mounted but they can be through panel mounted with an additional mounting kit if required.

Frame Size 1 to 3 - up to 4 kW

The number identifies the frame size and therefore the width, height and fixing centres. The letter identifies a depth variation. We use these references to show size differences across the product range.

Overall dimensions for Frame Sizes 1 to 3
Frame size	1		2			3		4
Frame reference	1c	1g	2f	2i	2j	3c	3d
D - Depth mm	116 mm	158 mm	144 mm	182 mm	199mm	193 mm	203 mm	180 mm
W - Width mm	68 mm		108 mm			140 mm		170 mm
H - Height mm	128 mm		128 mm			128 mm		128 mm
Fixing centres (h x w)	118 mm x 56 mm		118 mm x 96 mm			118 mm x 128 mm		118 mm x 158 mm

Frame Size 4 to 7 - From 5.5 kW 400 Vac

The number identifies the frame size and therefore the width, height and fixing centres. The letter identifies a depth variation. We use these references to show size differences across the product range.

Overall dimensions for Frame Sizes 4 to 7
Frame Size	5	6	7
D - Depth mm	196 mm	196 mm	251 mm
W - Width mm	140 mm	180 mm	190 mm
H - Height mm	260 mm	300 mm	350 mm
Fixing centres (h x w)	248 mm x 122 mm	284 mm x 160 mm	336 mm x 160 mm

Hardware feature overview

Hardware features for 230Vac single-phase
Frame size	1	2	3	4	5	6	7	Overview of hardware feature
Internal brake switch	✅	✅	✅	✅	✅	✅	✅	Internal brake switch is included on all units. External resistor required for operation.
EMC filter	✅	✅	✅	❌	✅	✅	✅	Supplied with EMC Filter earth connection DISCONNECTED. Can be easily connected by moving a screw
STO (Safe Torque Off)	✅	✅	✅	✅	✅	✅	✅	Dual channel STO safety Inputs. Inputs are linked out and should be replaced with safety circuit if required.

Note: Frame 4 applies only to the 4 kW, 230 V unit, which is not available with an EMC filter.

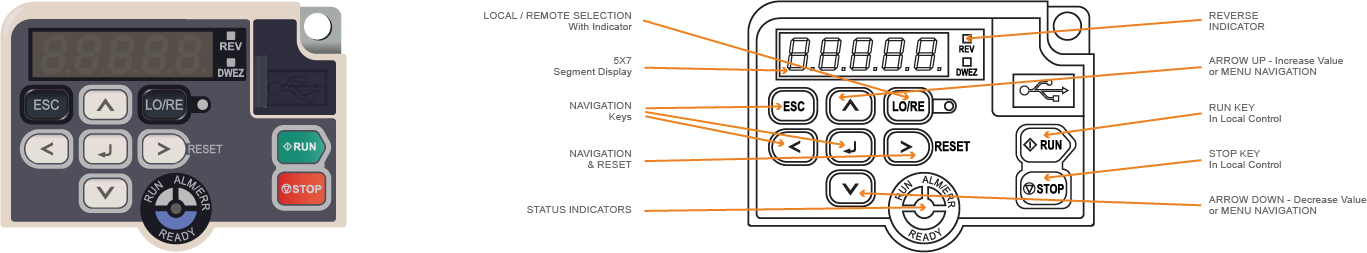

Yaskawa GA500 keypad functionality

The GA500 has a removable keypad that can be door mounted using a mounting kit and suitable cable. An alternative multi-line keypad is also available.

Yaskawa GA500 control terminal details and default wiring diagram

The control terminals are the same across the GA500 range. By default, SC and SP are linked for NPN logic. The wiring diagram below shows PNP logic, which is more common in UK and EU installations.

Below is the default wiring diagram for the GA500. This is applicable to all units. Basic operation using a volt-free contact and a potentiometer.

Yaskawa GA500 installation guidelines

The GA500 VSDs detailed on this page are IP20 units and should be mounted in a suitable control cabinet.

If a higher IP rating is required, consider a cold-plate unit, available for 230 V models up to 3 kW. Because the unit has no fan, it can be installed in a suitably sized metal cabinet. Heat can be dissipated through a large metal mounting surface, such as a control-panel backplate acting as an alternative heatsink. Always account for the specified ambient conditions.

Yaskawa GA500 options and accessories

The GA500 accepts one communications option card. A front-mounted module is required to install the card and will increase the unit's overall depth. A remote keypad, connection lead and through-panel mounting kits are also available.

Yaskawa GA500 downloads

Yaskawa GA500 part number description

On every GA500 there is a label which identifies the unit. This label will also include the rating of the unit which should also be used when looking for a replacement.

Part Number Example
Example	CIPR	GA50	C	4	004	E	B	A	A
	Product	Series	Region Code	Input Mains Voltage	Rated Output Current	EMC Filter	Enclosure	Special Spec	Revision
	CIPR = VSD	GA50 = GA500	C = Europe	4 = 400 Vac three-phase B = 230Vac single-phase	004 = 4 A (VT)	E = EMC Filter Fitted	B = IP20 (open)	A = Standard	A = Original
