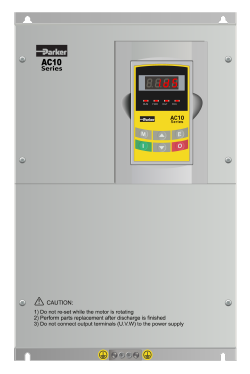

Parker AC10 AC Inverter Drive Range: 0.18kW to 180kW
Introduction
The Parker AC10 AC inverter drive range is designed to provide dependable and economical variable speed motor control for a wide range of industrial and commercial applications. Covering ratings from 0.18kW to 180kW, the AC10 combines compact dimensions, straightforward commissioning and stable motor performance in a cost-effective package suitable for both OEM machine builders and end users.
Available in 230V single-phase and 400V three-phase versions depending on power rating, the Parker AC10 is commonly used for pumps, fans, conveyors, mixers, processing equipment and general-purpose machinery. Built-in EMC filtering and integrated braking functionality simplify installation while helping reduce panel space and additional component costs.
The AC10 range has been developed for applications where reliable speed control, easy parameter setup and low maintenance are important. With clear keypad operation, practical control terminals and a broad range of power sizes, the Parker AC10 inverter drive offers a practical solution for new installations, replacement projects and system upgrades.
Need help selecting the correct Parker AC10 drive? View the technical data, dimensions, wiring information and individual product listings below, or contact Inverter Drive Supermarket for assistance with drive sizing and availability.
You can navigate using the links below or scroll through all the details.
Select Your Parker AC10 Drive - Prices and Availability
Help and guidance for the Parker AC10, including specific information useful when commissioning or troubleshooting.
Parker AC10 rating details from 0.18kW to 2.2kW - 230V single-phase and 400V three-phase
Up to 2.2kW, the AC10 is available as a 230V single-phase or 400V three-phase unit. The nameplate on the side of the unit will give the voltage rating and should be reviewed before installation, as applying 400V to a 230V unit will cause damage.
Rating table: 0.18kW to 2.2kW (230V single-phase and 400V three-phase)
| Voltage |
kW rating |
0.18kW |
0.37kW |
0.55kW |
0.75kW |
1.1kW |
1.5kW |
2.2kW |
| 230V single-phase |
Output current |
1.5A |
2.5A |
3.5A |
4.5A |
5A |
7A |
10A |
| Frame size |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
| 400V three-phase |
Output current |
0.6A |
1A |
1.5A |
2A |
3A |
4A |
6.5A |
| Frame size |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
Overall dimensions given are in mm. The height dimension includes the earth clamp fitted to the heatsink. Height given in parentheses is the body of the unit only.
Overall dimensions for Frame Sizes 1 and 2
| Frame size |
1 |
2 |
| H - Height mm |
153mm (138mm) |
195mm (180mm) |
| W - Width mm |
80mm |
106mm |
| D - Depth mm |
135mm |
150mm |
| Fixings |
4 x M4 |
4 x M4 |
| Fixing centres (h x w) |
128mm x 70mm |
170mm x 94mm |
Hardware features for Frame Sizes 1 and 2
| Frame size |
1 |
2 |
Overview of hardware feature |
| Internal brake switch |
Yes |
Yes |
Internal brake switch is included on all units. External resistor required for operation. |
| EMC filter |
Yes |
Yes |
EMC filter earth connection cannot be removed. If RCDs are used, Type B must be installed. |
| STO |
No |
No |
Not available on this product range. |
Parker AC10 rating details from 3.7kW to 22kW
In this power range, the AC10 is rated for 400V three-phase operation and is supplied with a plastic housing and fixed keypad.
Rating table: 3.7kW to 22kW (400V three-phase)
| kW rating |
3.7kW |
4kW |
5.5kW |
7.5kW |
11kW |
15kW |
18.5kW |
22kW |
| Output current |
8A |
9A |
12A |
17A |
23A |
32A |
38A |
44A |
| Frame size |
3 |
3 |
3 |
4 |
4 |
5 |
5 |
5 |
Overall dimensions given are in mm. The height dimension includes the earth clamp fitted to the heatsink. Height given in parentheses is the body of the unit only.
Overall dimensions for Frame Sizes 3, 4 and 5
| Frame size |
3 |
4 |
5 |
| H - Height mm |
250mm (235mm) |
280mm (265mm) |
355mm (340mm) |
| W - Width mm |
138mm |
156mm |
205mm |
| D - Depth mm |
152mm |
170mm |
196mm |
| Fixings |
4 x M5 |
4 x M5 |
4 x M5 |
| Fixing centres (h x w) |
225mm x 126mm |
255mm x 146mm |
330mm x 194mm |
Parker AC10 rating details from 30kW to 75kW
Rating table: 30kW to 75kW (400V three-phase)
| kW rating |
30kW |
37kW |
45kW |
55kW |
75kW |
| Output current |
60A |
75A |
90A |
110A |
150A |
| Frame size |
6 |
7 |
7 |
8 |
8 |
Overall dimensions given are in mm.
Overall dimensions for Frame Sizes 6, 7 and 8
| Frame size |
6 |
7 |
8 |
| H - Height mm |
435mm |
480mm |
555mm |
| W - Width mm |
265mm |
315mm |
360mm |
| D - Depth mm |
235mm |
234mm |
265mm |
| Fixings |
4 x M6 |
4 x M8 |
4 x M8 |
| Fixing centres (h x w) |
412mm x 235mm |
465mm x 274mm |
530mm x 320mm |
Parker AC10 rating details from 90kW to 180kW
Rating table: 90kW to 180kW (400V three-phase)
| kW rating |
90kW |
110kW |
132kW |
160kW |
180kW |
| Output current |
180A |
220A |
265A |
320A |
360A |
| Frame size |
9 |
9 |
10 |
11 |
11 |
Overall dimensions given are in mm.
Overall dimensions for Frame Sizes 9, 10 and 11
| Frame size |
9 |
10 |
11 |
| H - Height mm |
630mm |
765mm |
910mm |
| W - Width mm |
410mm |
516mm |
560mm |
| D - Depth mm |
300mm |
326mm |
342mm |
| Fixings |
4 x M10 |
4 x M10 |
4 x M10 |
| Fixing centres (h x w) |
600mm x 370mm |
740mm x 360mm |
882mm x 390mm |
Overview of hardware features from 3.7kW to 180kW - 400V three-phase
Hardware features
| Frame |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
| Internal brake switch |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| EMC filter |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| STO |
No |
No |
No |
No |
No |
No |
No |
No |
No |
Parker AC10 keypad functionality
Up to 22kW, the AC10 has a fixed keypad. If a panel-mounted keypad is required, the optional remote keypad should be used.
From 30kW and above, the AC10 has a removable keypad which can be panel mounted if required.
Both keypads have identical features and functionality.
Parker AC10 control terminal details and default wiring diagram
Control terminals for units up to 22kW (Frame Sizes 1 to 5)
Control terminals for units 30kW and above (Frame Sizes 6 to 11)
From 30kW and above, the I/O increases slightly with the addition of two digital inputs and one digital output.
Below is the default wiring diagram for the AC10. This is applicable to all units. Additional digital I/O available on the larger units is not shown.
Parker AC10 installation guidelines
The AC10 VSDs detailed on this page are IP20 units and should be mounted in a suitable control cabinet. At 30kW and above, the drives are supplied in a metal enclosure suitable for wall mounting, but only in clean environments free from dirt, dust and moisture. The IP rating of these larger units is still IP20, although the terminals are shrouded in a gland box.
If a higher IP rating is required, the AC10 is also available in an IP66 format.
Parker AC10 options and accessories
The AC10 does not include an internal option slot. An optional remote keypad with lead and a programming cable for PC connection are available.
Parker AC10 downloads
User guides for AC10 drives up to 22kW (Frame Sizes 1 to 5)
User guides for AC10 drives 30kW and above (Frame Sizes 6 to 11)
DSE-Lite programming software - configuration tool for Parker AC variable speed drives and DC drives.
Prepared by Inverter Drive Supermarket Ltd.
Specification verified against Parker AC10 product manuals.
