Siemens SINAMICS V20 AC Inverter Drive Range: 0.12kW to 22kW
A technical overview of the Sinamics V20 VFD product range along with useful downloads and links to individual product listings

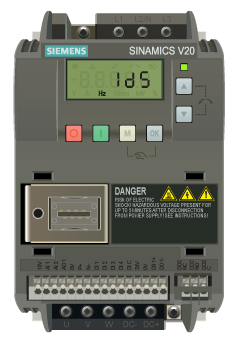

Siemens V20 (Frame Size A)Introduction
The Siemens SINAMICS V20 is a compact, reliable, and cost-effective variable frequency drive (AC Inverter Drive) designed for simple speed control applications with standard AC induction (asynchronous) motors. Covering a power range from 0.12 kW up to 22 kW, the V20 is available for 230 V single-phase and 400 V three-phase supply systems, making it suitable for a wide variety of low-voltage industrial and commercial applications.
Engineered for V/F (voltage/frequency) control, the SINAMICS V20 delivers stable motor operation and dependable performance for pumps, fans, conveyors, compressors, and general machinery. Its straightforward parameter structure and intuitive setup allow for fast commissioning, even for users with limited inverter experience. Built-in application macros further simplify configuration and reduce installation time.
Combining Siemens quality with simplicity and affordability, the SINAMICS V20 is an ideal solution for cost-sensitive applications that require efficient motor speed control without unnecessary complexity.
Key Specifications
| Power Range |
0.12kW to 22kW |
| Voltage Supply |
230Vac single-phase or 400Vac three-phase |
| Installation Type |
IP20, suitable for panel mounting |
| Motor Control |
V/F control of standard AC Induction Motors |
| Useful Feature |
EMC Filters fitted on all units |
The Siemens V20 is commonly used as an economic replacement for the Siemens Micromaster 420 in basic speed control applications. Existing motor data and wiring arrangements should always be checked before selecting a replacement drive.
For assistance in selecting your next Siemens VSD please contact us
Use the anchors below to navigate this page or scroll for all details
Siemens SINAMICS V20 drives in stock now – ready for immediate dispatch.
Siemens V20 230V Single Phase Ratings: 0.12kW to 3kW
| Power Rating |
0.12kW |
0.25kW |
0.37kW |
0.55kW |
0.75kW |
1.1kW |
1.5kW |
2.2kW |
3kW |
| Frame Size |
AA |
AA |
AA |
AB |
AB |
AC |
AC |
AD |
AD |
| What's Included |
Frame AA |
Frame AB |
Frame AC |
Frame AD |
Details of Hardware |
| Internal Brake Switch |
No |
No |
No |
No |
External Braking module is available if required |
| EMC Filter |
Yes |
Yes |
Yes |
Yes |
High performance Domestic grade Filter. Cannot be removed |
| Earth Clamp |
No |
No |
No |
No |
Optional earthing plate available |
| STO |
No |
No |
No |
No |
Not available on this product range |
| Frame Size |
AA (FSAA) |
AB (FSAB) |
AC (FSAC) |
AD (FSAD) |
| H- Height (mm) |
142 |
142 |
161 |
177 |
| W - Width (mm) |
68 |
68 |
91 |
137 |
| D - Depth (mm) |
108 |
128 |
147 |
159 |
| Fixings |
2 x M4 |
2 x M4 |
4 x M4 |
4 x M4 |
| Fixing Centres (h x w) mm |
132 x 58 |
132 x 58 |
140 x 79 |
159 x 22 |
Siemens V20 400V Three Phase Ratings: 0.37kW to 22kW
| Power Rating |
0.37kW |
0.55kW |
0.75kW |
1.5kW |
2.2kW |
3kW |
4kW |
5.5kW |
7.5kW |
11kW |
15kW |
18.5kW |
22kW |
| Frame Size |
A |
A |
A |
A |
A |
B |
B |
C |
D |
D |
D |
E |
E |
| What's Included |
A |
B |
C |
D |
E |
Details of Hardware |
| Internal Brake Switch |
Yes |
Yes |
Yes |
No |
No |
External Brake unit available for Frames D and E |
| EMC Filter |
Yes |
Yes |
Yes |
Yes |
Yes |
EMC Earth connection can only be removed on frame E |
| Earth Clamp |
No |
No |
No |
No |
No |
Optional plate required for good cable management |
| STO |
No |
No |
No |
No |
No |
Not available on this product range |
| Frame Size |
A (FSA) |
B (FSB) |
C (FSC) |
D (FSD) |
E (FSE) |
| Height (H) mm |
150 |
160 |
182 |
207 |
265 |
| Width (W) mm |
90 |
140 |
184 |
240 |
245 |
| Depth (D) mm |
146 |
165 |
169 |
173 |
209 |
| Fixings |
4 x M4 |
4 x M4 |
4 x M5 |
4 x M5 |
4 x M5 |
| Fixing Centres (h x w) mm |
140 x 79 |
135 x 127 |
170 x 140 |
223 x 166 |
228 x 206 |
V20 Keypad Functionality
The Keypad is fixed and has a 5 x 7 segment display with an indicator and operator keys. The SINAMICS V20 Keypad uses differing types of Keys across the range (Individual buttons or membrane) however the functionality is identical. At first glance, the keypad appears very simple; however, by holding buttons for a longer duration and using specific key combinations, the available functionality is significantly expanded; for example pressing the arrow up and arrow down at the same time will change direction. An additional Keypad (BOP) is available for panel mounting if required; please note that an additional interface module is also required to connect the Keypad (BOP) to the V20
V20 Control Terminals and Default Wiring Diagram
The V20 has spring mounted control terminals. There are 2 terminal arrangements depending on the rating however the functionality is identical across the V20 range.
When initially powered up the V20 is ready to operate from the keypad. This can be easily changed to remote control if required. Step by step details of how to do this is given in our Easy Start Guide
Siemens V20 Installation Requirements
All units are IP20 and must be mounted in a suitable enclosure with adequate ventilation. Any dust must be non-conducting otherwise this will damage the unit.
Siemens Accessories and Options
There is no option slot on the Siemens V20 but remote Keypads for door mounting and parameter loading modules are available
V20 Manual Downloads
V20 Part Numbers
Follow the secure links below for more information about the individual V20 products
| 230V Single Phase |
400V Three Phase |
| Part Number |
Output Rating |
Part Number |
Output Rating: 150% (110%) |
| 6SL3210-5BB11-2BV1 |
0.12kW, 0.9A |
6SL3210-5BE13-7CV1 |
0.37kW, 1.3A |
| 6SL3210-5BB12-5BV1 |
0.25kW, 1.7A |
6SL3210-5BE15-5CV1 |
0.55kW, 1.7A |
| 6SL3210-5BB13-7BV1 |
0.37kW, 2.3A |
6SL3210-5BE17-5CV1 |
0.75kW, 2.2A |
| 6SL3210-5BB15-5BV1 |
0.55kW, 3.2A |
6SL3210-5BE21-1CV1 |
1.1kW, 3.1A |
| 6SL3210-5BB17-5BV1 |
0.75kW, 4.2A |
6SL3210-5BE21-5CV1 |
1.5kW, 4.1A |
| 6SL3210-5BB21-1BV1 |
1.1kW, 6A |
6SL3210-5BE22-2CV1 |
2.2kW, 5.6A |
| 6SL3210-5BB21-5BV1 |
1.5kW, 7.8A |
6SL3210-5BE23-0CV1 |
3kW, 7.3A |
| 6SL3210-5BB22-2BV1 |
2.2kW, 11A |
6SL3210-5BE24-0CV1 |
4kW, 8.8A |
| 6SL3210-5BB23-0BV1 |
3kW, 13.6A |
6SL3210-5BE25-5CV1 |
5.5kW, 11A |
| |
|
6SL3210-5BE27-5CV0 |
7.5kW, 16.5A |
| |
|
6SL3210-5BE31-1CV0 |
11kW, 25A |
| |
|
6SL3210-5BE31-5CV0 |
15kW, 31A |
| |
|
6SL3210-5BE31-8CV0 |
18.5kW, 34A (22kW, 45A) |
| |
|
6SL3210-5BE32-2CV0 |
22kW, 45A (30kW, 60A) |
