Parker AC15 AC Inverter Drive Range: from 0.37kW to 30kW
Introduction
The Parker AC15 Compact Drive has been developed to provide a practical and efficient motor control solution for everyday industrial automation tasks. Offering dependable performance in a space-saving design, the AC15 is well suited to smaller horsepower applications where simplicity, flexibility, and value are key requirements. The AC15 is commonly used to control motors in applications such as material handling systems, ventilation equipment, pumps, and processing machinery, delivering consistent speed control and improved operational efficiency. With a focus on reducing installation complexity and supporting reliable long-term operation, the Parker AC15 helps manufacturers and machine builders enhance productivity while keeping maintenance and energy costs to a minimum. Backed by Parker’s extensive experience in motion and drive technology, the AC15 offers a smart and economical choice for modern variable speed applications.
You can navigate using the links or scroll through all the details below
Help and Guidance for the Parker AC15 - gives specific information useful when commissioning or trouble-shooting. (coming soon)
230Vac Parker AC15 Listings (please login before going to the link) - Price and Availability
400Vac Parker AC15 Listings (please login before going to the link) - Price and Availability
Parker AC15 Rating details from 0.37 kW to 4 kW - 230 Vac single-phase and 400 Vac three-phase
Up to 2.2 kW the AC15 is available as a 230 Vac single-phase or 400 Vac three-phase unit. The 4 kW unit is available as a three-phase unit only. The nameplate on the side of the unit will give the voltage rating and should be reviewed as putting 400 Vac on a 230 Vac unit will cause damage.
Rating Table 0.37 kW to 4kW
| 230V single-phase |
0.37kW |
0.75kW |
1.5kW |
2.2kW |
- |
| Output Current |
2.5 A |
4.5 A |
7 A |
10A |
- |
| Frame Size |
1 |
1 |
1 |
2 |
- |
| 400V three-phase |
0.37kW |
0.75kW |
1.5kW |
2.2kW |
4kW |
| Output Current |
1.2 A |
2 A |
4 A |
6.5 A |
9 A |
| Frame Size |
1 |
2 |
2 |
2 |
2 |
Overall dimensions given are in mm. The height dimension given includes the earth clamp fitted to the heatsink. Height given in parentheses is the body of the unit only.
Overall Dimensions for Frame Size 1 and 2
| Frame Size |
1 |
2 |
| H - Height mm |
176mm (138mm) |
185mm (180mm) |
| W - Width mm |
82mm |
109mm |
| D - Depth mm |
145mm |
180mm |
| Fixings |
4 x M4 |
4 x M4 |
| Fixing Centres (h x w) |
128mm x 70mm |
170mm x 94mm |
Hardware Features Frame Size 1 and 2
| Frame Size |
1 |
2 |
Overview of Hardware Feature |
| Internal Brake Switch |
Yes |
Yes |
Internal Brake Switch in included on all units. External resistor required for operation |
| EMC Filter |
Yes |
Yes |
EMC Filter Earth connection can be removed. Front cover needs to be removed to do this |
| STO |
Yes |
Yes |
Dual Channel STO fitted as standard. Links required if safety circuit is not connected |
Parker AC15 Rating details from 5.5 kW to 30 kW
In this power range the AC15 is rated for 400 V three-phase with a fixed keypad
Rating Table 3.7 kW to 22 kW (400 Vac three-phase)
| kW Rating |
5.5 kW |
7.5 kW |
11 kW |
15 kW |
18.5 kW |
22 kW |
30 kW |
| Output Current |
12 A |
17 A |
23 A |
32 A |
38 A |
44 A |
60 A |
| Frame Size |
3 |
3 |
4 |
4 |
5 |
5 |
5 |
Overall dimensions given are in mm. The height dimension given includes the earth clamp fitted to the heatsink. Height given in parentheses is the body of the unit only.
Overall Dimensions for Frame Size 3, 4 and 5
| Frame Size |
3 |
4 |
5 |
| H - Height mm |
282 mm (238 mm) |
322 mm (265 mm) |
402 mm (340 mm) |
| W - Width mm |
142 mm |
161 mm |
210 mm |
| D - Depth mm |
185 mm |
196 mm |
221 mm |
| Fixings |
4 x M5 |
4 x M5 |
4 x M5 |
| Fixing Centres (h x w) |
225 mm x 126 mm |
255 mm x 146 mm |
330 mm x 194 mm |
Overview of Hardware Features 5.5 kW to 30 kW - 400 V three-phase
Hardware Features
| Frame |
3 |
4 |
5 |
Overview of hardware feature |
| Internal Brake Switch |
Yes |
Yes |
Yes |
Braking Switch (DBr) is fitted on all units. External Resistor required for operation. |
| EMC Filter |
Yes |
Yes |
Yes |
EMC Filter is fitted on all unit. Can be disabled by removing link J1 |
| STO |
Yes |
Yes |
Yes |
Dual channel STO fitted on all units. Links required if safety circuit is not connected |
Parker AC15 Keypad Functionality
The AC15 has a fixed Keypad. If a panel mounted keypad is needed the optional keypad is required (see options below)
Parker AC15 Control Terminal Details and Default wiring diagram

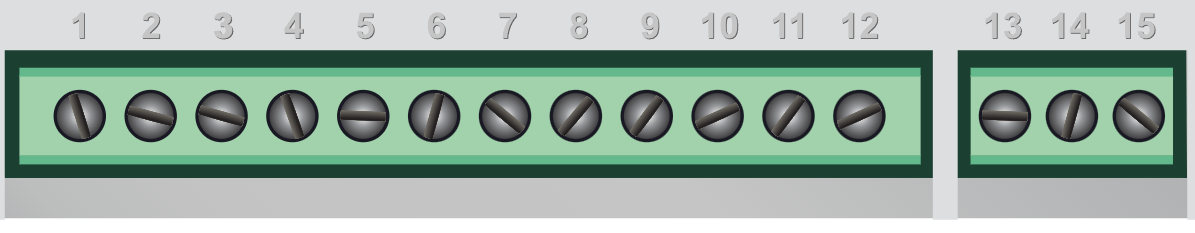

Frame Size 1 has less I/O than Frames 2 to 5; see below
Frame Sizes 2 to 5 have the same amount of I/O
Default Wiring Diagrams
The terminal references are different for Frame Size 1 and Frame Sizes 2 to 5. For ease of use we have given you 2 wiring diagrams showing the different terminal references
Frame Size 1
Frame Sizes 2 to 5
Parker AC15 Installaion Guidelines
The AC15 VSDs detailed have an IP rating of IP20. This means each unit must be mounted in a suitable control cabinet to protect the unit and the user.
Parker AC15 Communications and Programming
| Frame Size |
Communications Included |
Communication / Programming Port |
Cable Required |
| 1 |
Modbus TCP |
RJ45 |
CAT5e or CAT6 |
| 2, 3, 4 and 5 |
Modbus TCP or Ethernet |
RJ45 |
CAT5e or CAT6 |
All units can be programmed using DSE-Lite a Parker programming, configuration and diagnostic tool which is free to download.
Parker AC15 Options and Accessories
The AC15 does not have an option slot. An optional remote keypad is available, cables are supplied separately
Parker AC15 Manual Downloads
User Guides for AC15 Frame Size 1 to 5. Easy Start Guide - coming soon.
AC15 Part Numbers
Below are tables of kW and Voltage rating vs Part Number. This is useful if only the Part Number is known. All part numbers are prefixed 15G
AC15 Single-phase 230Vac
AC15 Three-phase 400Vac
AC15 and AC10 Product Comparison
AC10 is being replaced with the AC15. The AC15 is a suitable replacement upto 30kW (use AC20 above 30kW) for more comparison details please see the following supporting information:
Prepared by Inverter Drive Supermarket Ltd: Specification verified against Parker AC10 Product Manuals; Last Reviewed July 2026
