WEG PLC200 Programmable Logic Controller

Introduction

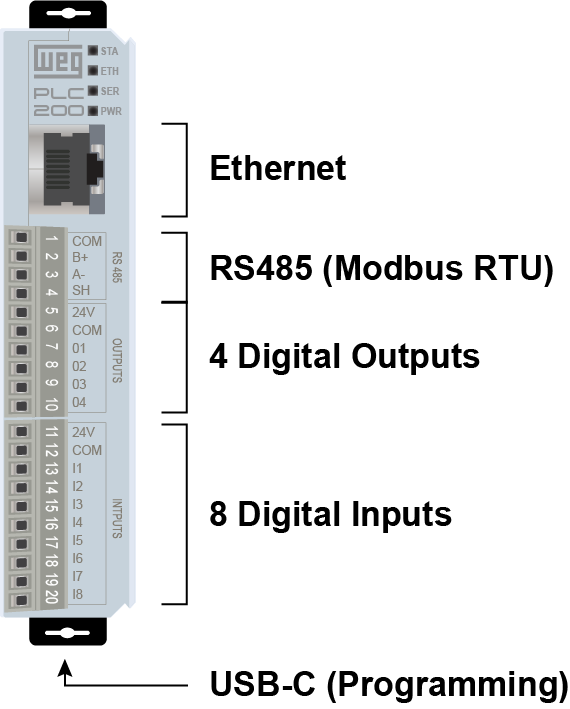

The WEG PLC200 is a compact industrial Programmable Logic Controller (PLC) designed for small to medium-sized automation applications. It incorporates onboard digital I/O, with additional I/O available through expansion modules where required. The PLC200 is programmed and configured using WEG’s WPS programming platform and includes Ethernet, RS485 and USB-C communication interfaces.

24Vdc Power Supply Required:

• Supply voltage: 20.4Vdc minimum to 28.8Vdc maximum
• Recommended minimum power supply capacity: 2A
• CPU consumption during normal operation: 100mA (without accessories or active communication networks)

Processor and Memory:

• Single-core 400MHz processor
• Scan cycle time: 2.2ms for 10,000 instructions
• Flash memory: 1MB
• RAM (volatile data): 128kB
• RAM (retentive data): 4kB
• Maximum instruction capacity: approximately 80,000 simple instructions



8 x Digital Inputs (Onboard):

• 8 x PNP digital inputs
• High-speed input capability: up to 150kHz per channel
• Maximum input voltage: 28.8Vdc
• Input consumption at 24Vdc: 0.74mA
• Maximum expansion: 200 digital input points plus fieldbus

4 x Digital Outputs (Onboard):

• 4 x PNP digital outputs
• PWM output frequency: up to 300kHz
• Maximum output current: 100mA per output
• Maximum expansion: 196 digital output points plus fieldbus

Communication Interfaces:

• RS485: Modbus RTU
• Ethernet (1 x RJ45): Modbus TCP and EtherNet/IP Adapter
• USB-C: Programming and monitoring

Programming and Expansion:

• Supports up to 8 local expansion modules
• Programmed using WEG WPS software
• Programming languages include LD (Ladder Diagram) and ST (Structured Text)

Installation and Protection:

• Protection rating: IP20
• Operating temperature: 0°C to 50°C
• DIN rail or panel mounting
• Weight: 0.35kg
• Dimensions: 134mm (H) x 25mm (W) x 98mm (D)

Manufacturer Part Number: 17393248 (PLC200)
