Radio Energie Hollow Shaft Incremental Optical Encoder Kit at HTL level with loose 12mm shaft adaptor, large restraint, M23 Plug/Cable and screws.
Application: Fits the fan shaft of Universal 56 and 63 frame standard IE1 and IE2 motors for Closed Loop Vector performace subject to removal of the plastic fan, fixing the restraint and the addition of force cooling.
PPR: 1024ppr default, programmable.
Signals: HTL, A+, B+, Z+, A-, B-, Z- push/pull at 11V to 30V.
Supply: 4.75V to 30V DC.
Pulse Frequency: 100kHz maximum.
Maximum Speed: Limited to 5,850RPM by maximum pulse frequency, (6000RPM.mechanical).
Load Current: 40mA avarage per channel.Current Consumption: less than 75mA at no load.
Connection: 12 pin M23 connector. Male, radial.
Dimensions: 88mm diameter x 45mm deep overall, excluding the connector.
Shaft: 12mm diameter hollow shaft when the loose 'BRH' adaptors is fitted.
Mounting: Via 4 x 3.2 Dia slots x 18 degrees on 64mm and 81mm pcd and clamp to shaft.
Weight: 450g
Inertia: 50gcm2.
Driving Torque: 1.2Ncm at working temperature.
Shaft Load: Maximum 20N Axial, 50N Radial.
Protection Rating: IP65.
Customs code: 8503009999
Part number: RCI58-H-14-U-G5-9-1024-G6-R + + BRH12 + DAR584P (RC158-H-14-U-G5-9-1024-G6-R + + BRH12 + DAR584P).

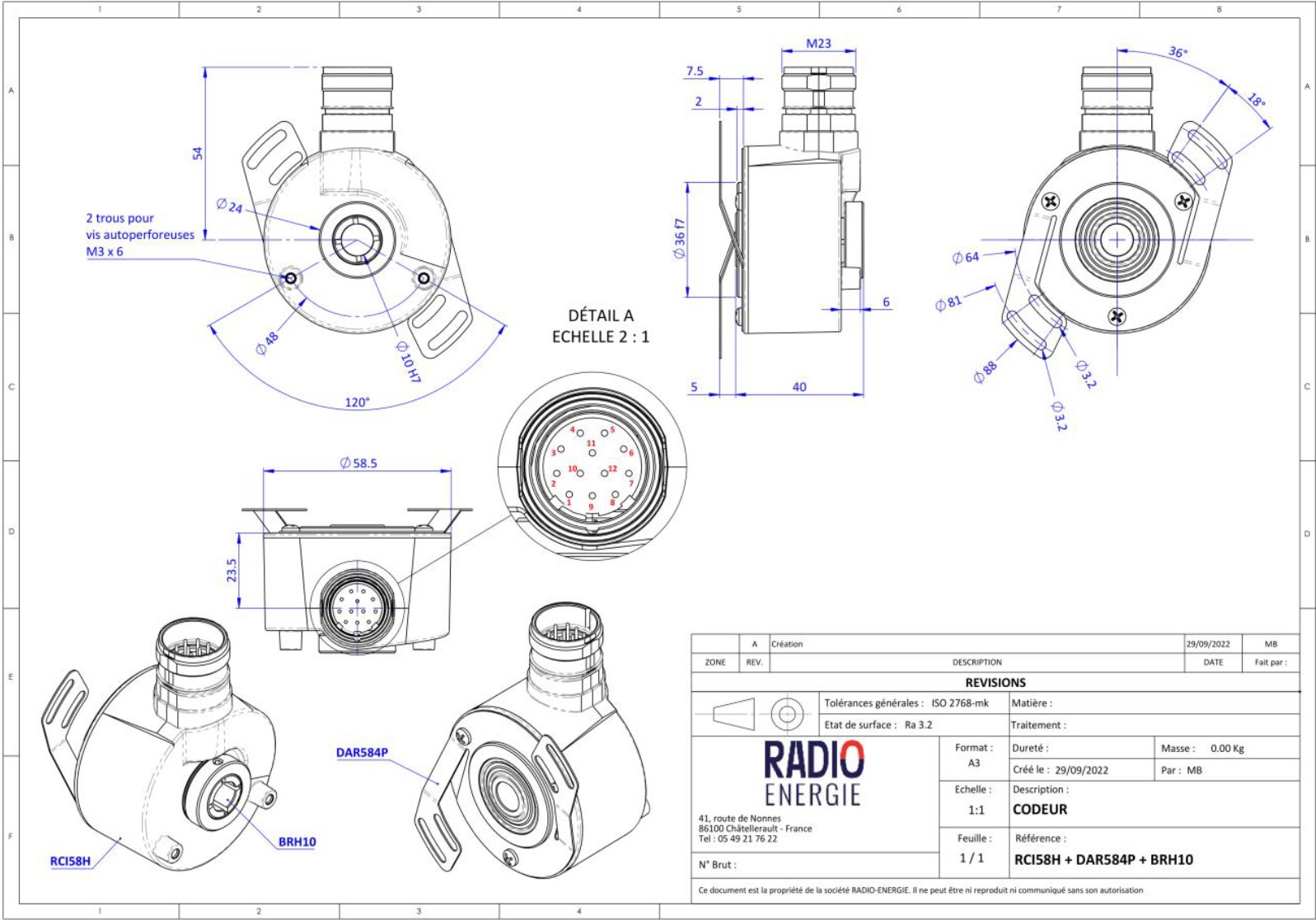

Download the drawing and data sheet from the links below...
