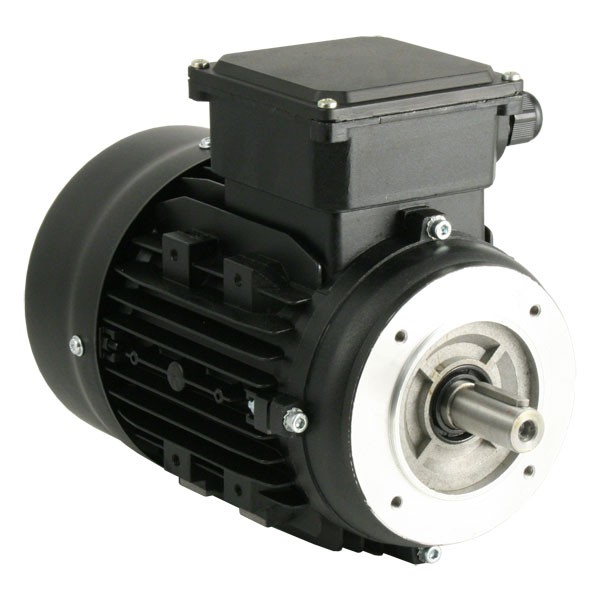

TEC - 230V Single Phase Motor 0.55kW (0.75HP) Cap Run 2P 71F Face

TEC 71 Frame - 0.55kW (0.75HP) Single Phase Capacitor Run 2 Pole Face Mounting AC Motor for use at fixed Speed.

Use with a fixed frequency 1ph input at 230V x 50Hz for 0.55kW x 2760RPM.

Rated Torque 1.9Nm
Low Starting Torque 0.7 x Rated Torque
Max Torque 1.8 x Rated Torque
Rated Current 3.52A
Starting Current 14.08A
Efficiency 71.5%

Mounting is B14 Face mounting.
Face mount on M6 tapped holes at 85mm PCD with 70mm diameter spigot in the 105mm diameter face.
Shaft is 14mm dia x 30mm long with 5mm keyway.
Weight is 6.2kg

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Full part number is - 0.5521TPC B14 (MY7122-B14)

Download the Dimensions and Technical Catalogue from the links below...
