ABB 3.1Nm Servo Motor with Absolute Encoder - 9C4.1.30.0E000001M00

68881552 (9C41300R000011M00)

Order Code: 21263
No Longer Available
This item is no longer available from us. Alternatives may be available - see linked products below.

Brand: ABB

ABB 9C4 - 3.1Nm Servo motor for use with ACSM1 and 400V supply.

3.1Nm continuous output.
8.3Nm peak with 3A drive
0.4kgcm2 Rotor Inertia

Includes Hedeinhain EQN1325 Absolute Encoder at 5V
Encoder resolution is 4096 x 8192 bits as EnDat 2.2

Manufacturers part number is 9C41300R000011M00 (68881463)
Manufacturer is ABB Drives

Use for Throttle position servo on Engine Test Rigs when ACSM1 Drive controller is set for 0/10V setpoint = Position.

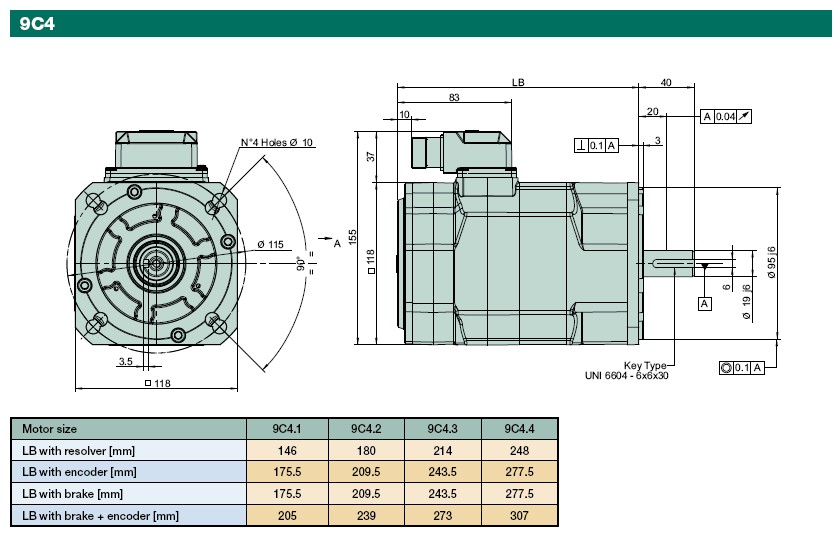

Download the outline Drawing from the link below...
