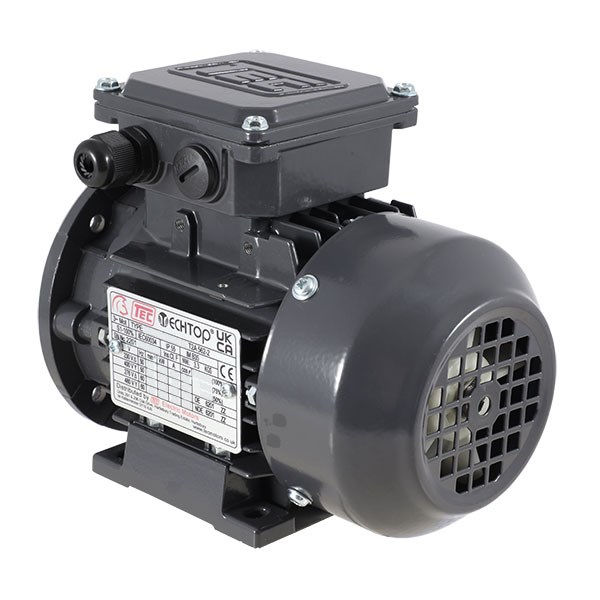

TEC Electric IE2 0.12kW 3ph 2 Pole Foot and Flange Mounting (B35) 56 Frame AC Motor for 230V or 400V 3 phase supply. Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.
0.12kW (0.15HP), 2840RPM (230V or 400V) at 50Hz 3ph.
Inverter Supply Output: 14:1 Speed Control range from 284RPM to 3976RPM for 5Hz to 70Hz control, with suitable de-rating at the lower speeds.
Full Load Current: 0.7A at 230V, or 0.4A at 400V.
Power Factor is 0.71, Efficiency is 60.5% (IE2) When mains connected at 50Hz
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links 'two at one side' for 400V 'Star' connection.
For 56 frame motors the feet (if supplied) can be removed or positioned opposite the terminal box. Consider a larger frame size or alternative mounting configuration (B14 Face or B5 Flange) if your application requires the terminal box to be positioned on either side of the motor.
98mm Wide x 195mm Long x 149mm high overall in its IP55 enclosure.
Flange mount on 4 x 7mm holes equispaced on 100mm PCD with 80mm diameter spigot in the 120mm diameter flange.
Foot mount on 5.8mm holes at 90mm wide x 71mm centres 36mm back from shaft shoulder.
Shaft is 9mm dia x 20mm with 3mm wide key.
Weight is 4.2kg.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.
Part number 0.1223TECAB35-IE2 or T2A-562-2-B35
