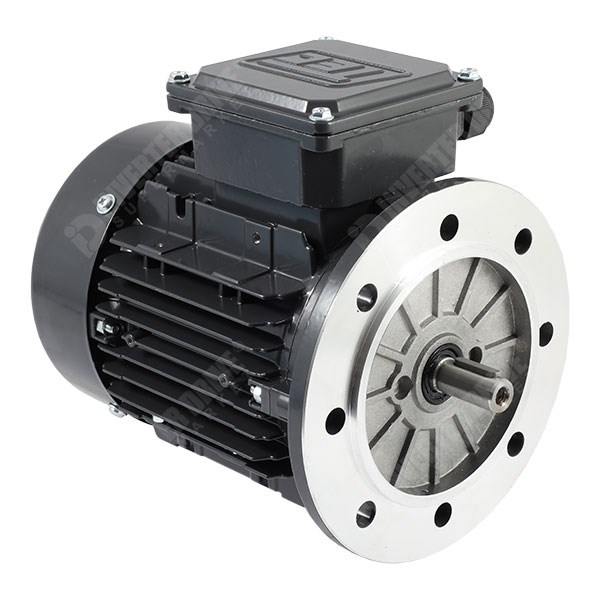

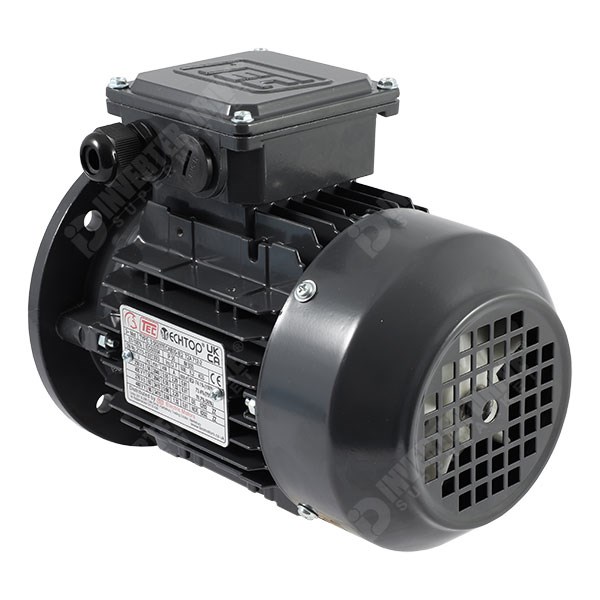

TEC Electric 0.55kW 3ph 2 Pole B5 Flange 71 Frame AC Motor for 230V or 400V 3 phase supply. Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.
Output: 0.55kW at 2860rpm, 230V or 400V, 50Hz 3ph.
Speed Range from Inverter Supply: From 286rpm to 3432rpm for 5Hz to 60Hz control, with suitable de-rating at the lower speeds.
Full Load Current with links in Delta for 230V 3ph: 2.46A.
Full Load Current with links in Star for 400V 3ph: 1.42A. (Default).
Torque: 1.9Nm
Power Factor: 0.84 when mains connected at 50Hz.
Efficiency: 71% (IE2)
Terminal box position: Top (default), sides (move feet).
Enclosure rating: IP55
140mm Wide x 241mm Long (Including shaft) x 184mm high overall (Including terminal box)
Flange mount on 4 x 9mm holes equispaced on 115mm PCD with 95mm diameter spigot in the 140mm diameter flange
Shaft: 14mm diameter, 30mm long with 5mm key.
Construction: Aluminium.
Weight is 5.8/kg.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.
Part Number: 0.5523TECAB5 Frame Reference: 712-2
