TEC TCNDK63 60:123RPM Worm Gearbox for 4 Pole 71 Frame B5 Motor

TCNDK63-60-71B5

Order Code: 37591

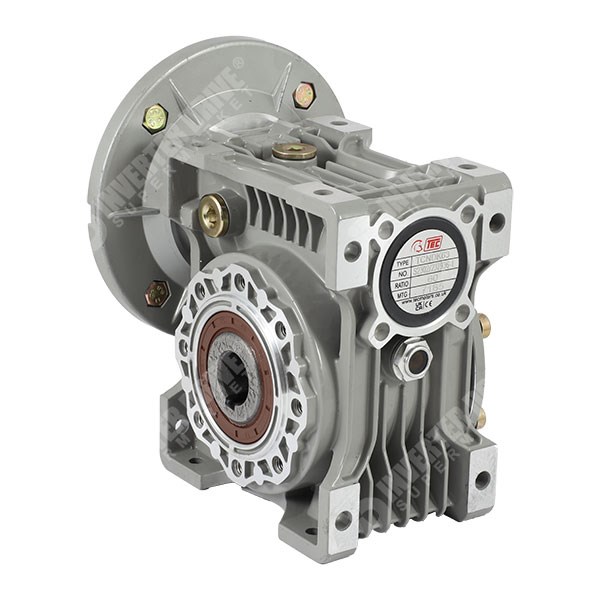

Photo of TEC TCNDK63 60:123RPM Worm Gearbox for 4 Pole 71 Frame B5 Motor

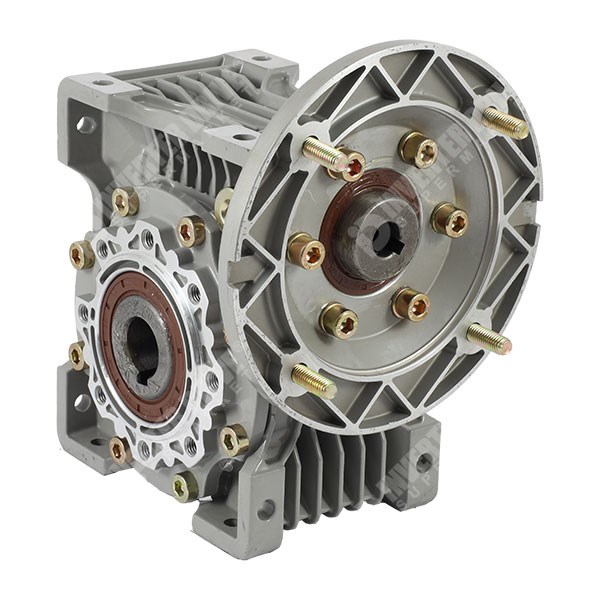

Photo of TEC TCNDK63 60:123RPM Worm Gearbox for 4 Pole 71 Frame B5 Motor
1 in stock (2+ normally 2-4 days)
Order by 3pm for next working day delivery*
£230.00
(excl. VAT)
£276.00
(inc. VAT )
Price break
per unit
1+
£230.00
10+
£209.30

Condition: New with Warranty
Brand: TEC Electric Motors, Range: TCNDK Right Angle Gearbox

TEC TCNDK63 Right-angle Worm Gearbox for 4 Pole 71 Frame B5 Motor (motor is not included).
Ratio: 60:1
Output Speed: 23RPM for Input Speed at 1360RPM (50Hz)
Max Transmissable Torque: 130Nm.
Efficiency: 67%
Max Input Power: 0.51kW for a power factor of 1.

Lubrication: Synthetic Oil, sealed for life and maintenance-free

Input flange and shaft socket to suit IEC 71 Frame Motor. 14mm bore diameter, 105mm flange with 4 x 7mm holes equispaced on 85mm PCD with 70mm register.
Weight: 6.2kg

Part Number: TCNDK63-60-71B5
