Radio Energie 1024ppr HTL Encoder, 10mm Solid Shaft, M23 Connector

Radio Energie Full Shaft Incremental Optical Encoder at HTL level.

PPR:  1024ppr default, programmable.
Signals:  HTL, A+, B+, Z+, A-, B-, Z- push/pull at 11V to 30V.
Supply:  4.75V to 30V DC.
Pulse Frequency:  100kHz maximum.
Maximum Speed: Limited to 5,850RPM by maximum pulse frequency, (12000RPM.mechanical).
Load Current:  40mA avarage per channel.Current Consumption: less than 75mA at no load.
Connection:   12 pin M23 connector. Male, radial.

Dimensions: 58mm diameter x 46.5mm deep excluding the shaft and connector.
Shaft: 10mm diameter x 19mm with locating flat.
Mounting:  Via 3 x M3 x 6mm tapped holes at 120 Degrees on 48mm pcd with 36mm diameter register.
Weight:  350g
Inertia: 50gcm2.
Driving Torque: 1.2Ncm at working temperature.
Shaft Load: Maximum 20N Axial, 50N Radial.
Protection Rating:  IP65.
Customs code:  8503009999

Part number:  RCI58-F-10-U-G5-9-1024-G6-R (RC158-F-10-U-G5-9-1024-G6-R).

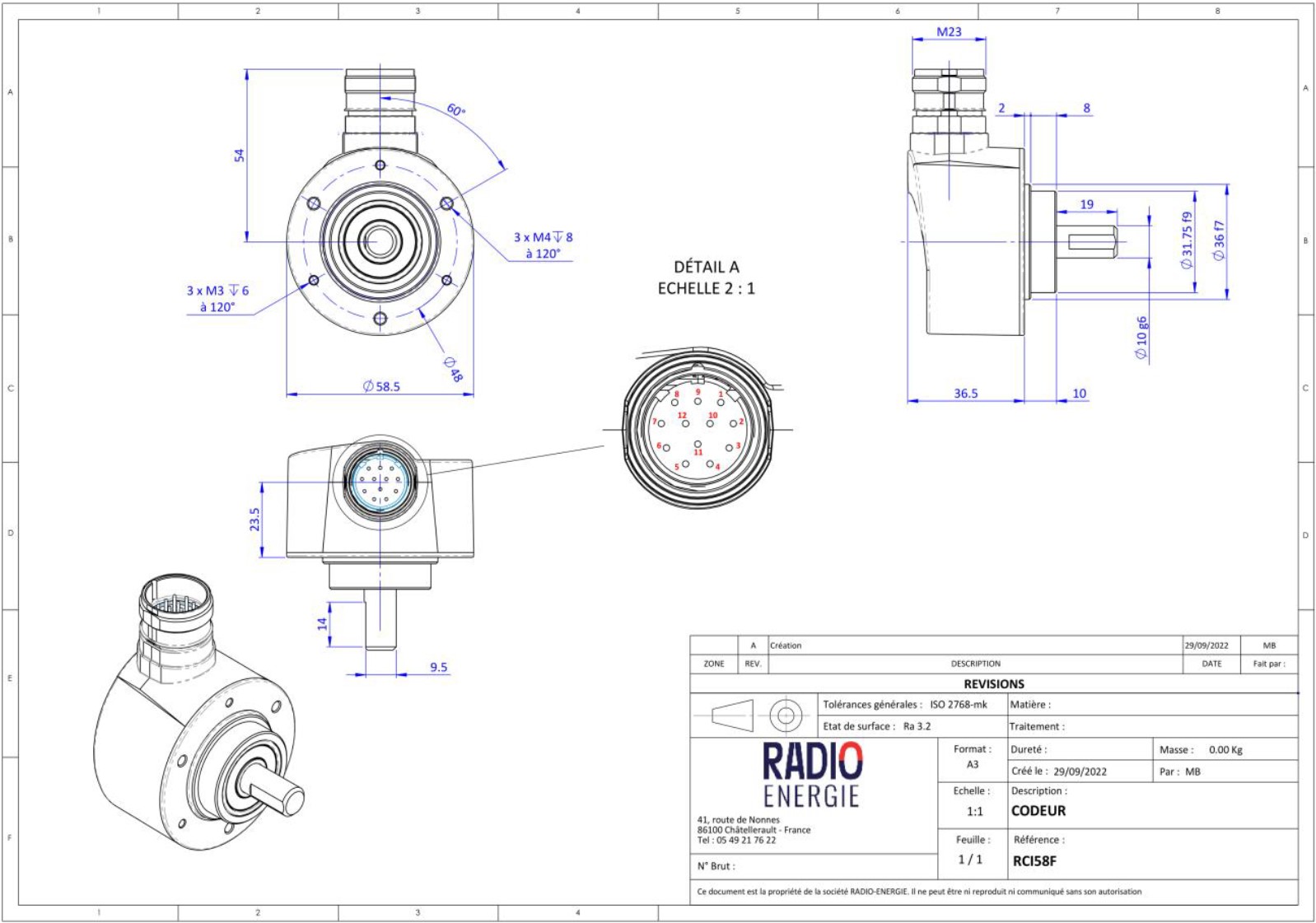

Download the drawing and data sheet from the links below...
