Radio Energie 1024ppr TTL Encoder Kit, 14mm Blind Hollow Shaft, Small Restraint & M23 Connector

Radio Energie Blind Hollow Shaft Incremental Optical Encoder Kit at TTL level with loose small restraint and screws.

PPR:  1024ppr default, programmable.
Signals:  TTL, A+, B+, Z+, A-, B-, Z- push/pull at 5V.
Supply:  4.75V to 30V DC.
Pulse Frequency:  100kHz maximum.
Maximum Speed: Limited to 5,850RPM by maximum pulse frequency, (6000RPM.mechanical).
Load Current:  40mA avarage per channel.Current Consumption: less than 75mA at no load.
Connection:   12 pin M23 connector. Male, radial.

Dimensions: 58mm diameter x 46.5mm deep excluding the shaft, restraint and connector.
Shaft: 14mm diameter blind hollow shaft (optional 'BRK' adaptors are available for reduced shaft sizes down to 6mm).
Mounting:  Via 2 x 3.2 Dia slots x 18 degrees on 64mm pcd and clamp to shaft.
Weight:  400g
Inertia: 50gcm2.
Driving Torque: 1.2Ncm at working temperature.
Shaft Load: Maximum 20N Axial, 50N Radial.
Protection Rating:  IP65.
Customs code:  8503009999

Part number:  RCI58-B-14-U-G2-9-1024-G6-R + DAR582P (RC158-B-14-U-G2-9-1024-G6-R + DAR582P).

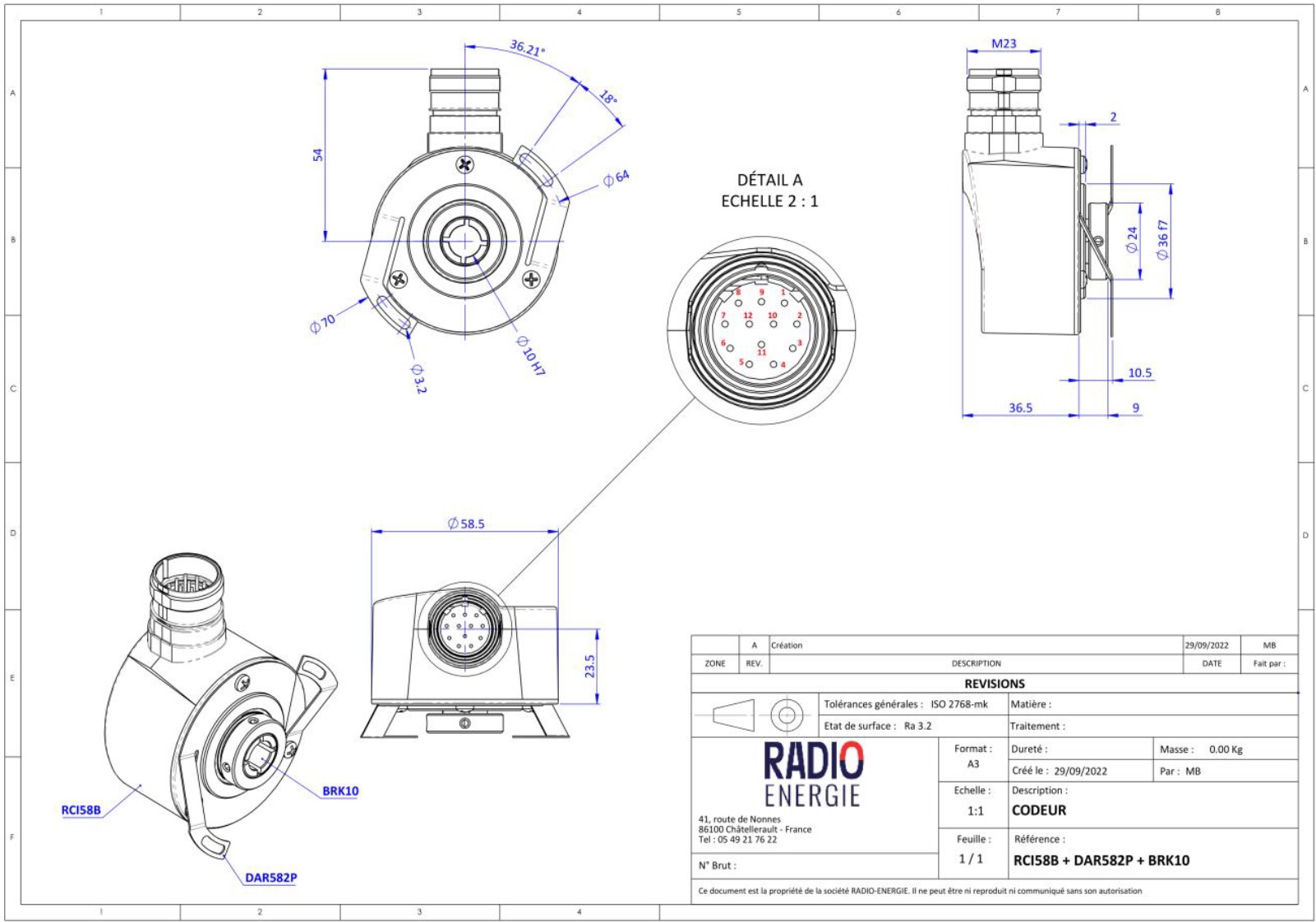

Download the drawing and data sheet from the links below...
