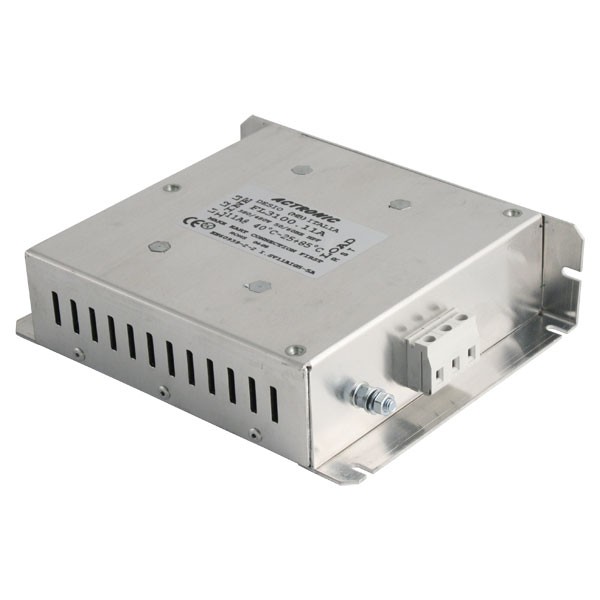

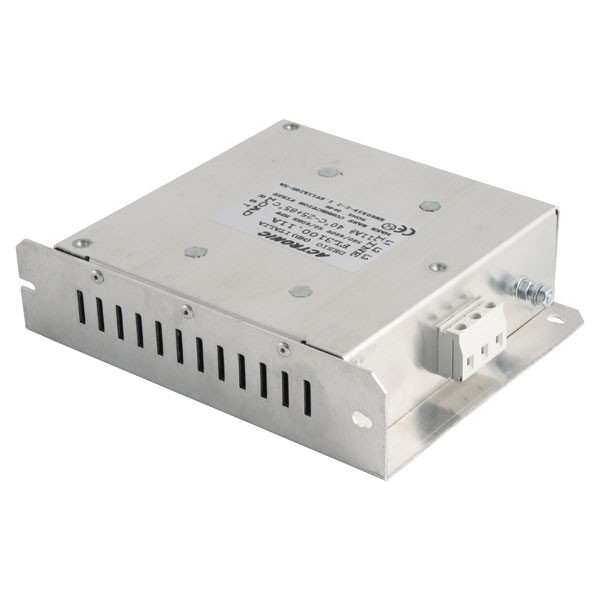

LS EMC/RFI Filter, 400V 3ph, suitable for 2.2kW / 4kW Starvert iG5A

Footprint EMC/RFI Filter to 11A for use with LS Industrial Systems Starvert iG5A Series Inverters at 400V 2.2kW and 4.0kW rating.

Size: H = 177mm, W = 150mm, D = 45mm.
Weight: 0.6kg

The Inverter can be mounted directly to this unit using the mounting points provided. This increases the overall depth of the inverter by 45mm.

Alternatively, the filter can be mounted adjacent to the Inverter using the mounting points at the back or at the side of the unit.

The filter should be installed between 3 phase supply and Inverter. The cables between the filter output and drive input should be as short as is practically possible.

EMC/RFI filtering suitable for 2nd Environment (Industrial).

See linked products below for compatible drives.

Manufacturers Part number is FS28404-12 (replaces FL3100.11A)
