Condition: New with Warranty Brand: Cressall, Range: Encased Dynamic Brake Resistors

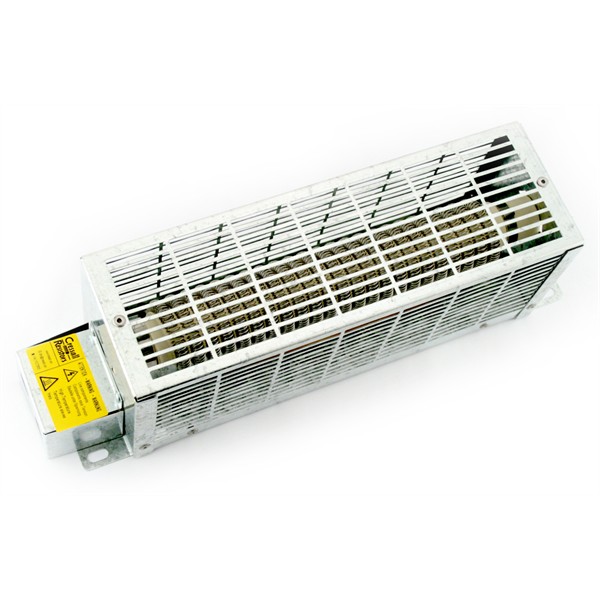

50 Ohms x 3000Watts (3kW) Dynamic Braking Resistor with terminal cover and thermal trip. Application: When connected to a suitable Inverter drive this will add braking to the drive system, by absorbing energy returning from the load.
Overload: 460% for 10 seconds every 100 Seconds, or as shown in the data sheet linked below. Maximum Overload: Limited by the brake chopper Voltage to 2.8kW for 230V Drives, and 11.2kW for 400V Drives. Tolerance: -0 +5%. Voltage: 1000V DC or AC rms.
Enclosure: IP20 when mounted (Open to rear). Dimensions: 367mm x 140mm high x 330mm wide. Mounting: Via 4 x M6 on 415mm by 185mm centres. Weight: 3.8kg.
Thermal sensor has a normally closed contact opening at 250ºC and closing at 210ºC.
Part Number: ES2-50R-SB (DBR50x3000).
See ES Series data sheet linked below.
RE/ 60x370 SI/PR/TP/KL 1000W 50R 5%
Order code: 24804
2 in stock
3+ normally 4 weeks
RE/ 60X370 SI/PR/TP/KL 50R 5% 1500W
Order code: 23993
ES1-50R-SB
Order code: 32771
Delivery 2 weeks
RE/ 60X370 SI/PR/TP/KL 2000W 50R 5%
Order code: 24822
1 in stock
2+ normally 4 weeks
RE/ 2x60X370 SI/PR/TP/KL 3000W 50R 5%
Order code: 24830
Delivery 4 weeks
RE/2x60x370SI/PR/TP/KL4500W50R5%
Order code: 26052
18-50R-11000
Order code: 20884
24-50R-12000
Order code: 20618
