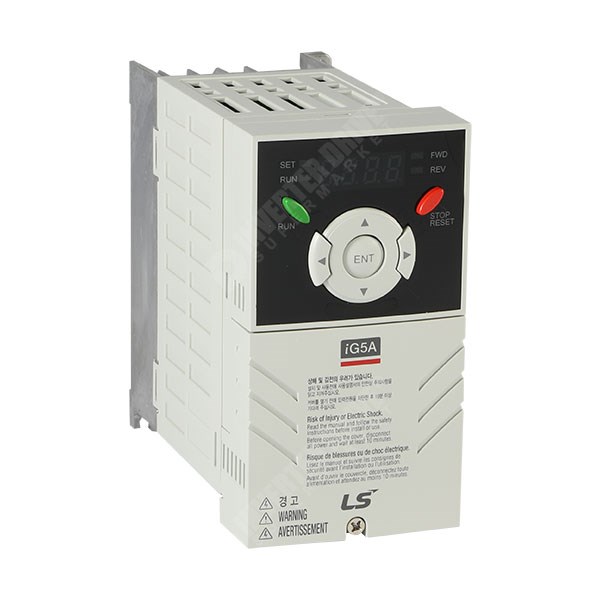

LS Industrial Systems Starvert iG5A AC Frequency Inverter for 0.55kW (0.75HP) and 0.75kW (1HP) 400V 3 Ph motor in VxF or Sensorless Vector Control control to 2.5A. Simple to set-up for a standard AC Induction motor.
Size 1: 70mm Wide x 130mm Deep x 128mm high.
Weight: 0.77Kg
Overload: 150% x 60 seconds.
Speed Control Range: 0-400Hz.
Braking: To 600 Ohm minimum external resistor (not supplied) - See the Resistor options linked below or use the 'Which Resistor' button on this page.
Features: Integrated keypad, 1 x Analogue Input, 8 Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a PC via 'Drive View'.
EMC Filters: None. See linked products below for external footprint EMC Filter Module.
Input Current: 3.6A.
Input Voltage: 380-480V three phase +10%, -15% at 50/60Hz ±5%.
Mounting: Cubicle mount via 2 x 4mm diameter holes at rear.
Ambient: Rated at 40C.
Ventilation space above and below: 100mm.
Ventilation space at sides: 50mm.
Manufacturers Part number: SV008iG5A-4
Download the LS Starvert iG5A Manual from the link below:-
