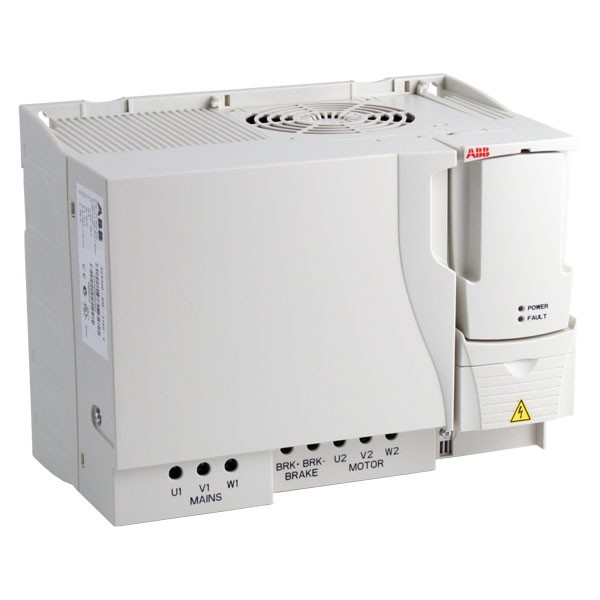

ABB ACS355 AC Frequency Inverter for 22kW (30HP) 400V 3 Phase motor in VxF or Sensorless Vector control to 44A. Simple to set-up with 400V three phase input for a standard AC Induction motor or permanent magnet synchronous motor.
**This product has been superseded please see new generation products below. If you require assistance migrating to the new products then please contact us**
No Keypad included.
Dimensions: Size R4 260mm Wide x 169mm Deep x 181mm high (244mm high including fastenings and clamp plate).
Enclosure Rating: IP20.
Weight: 5.1kg.
Overload: 150% x 60 seconds every 10 minutes, 175% x 2 seconds at start.
Speed Control Range: 0-600Hz.
Braking: Full load for 10 seconds every 120 seconds to 13 Ohm minimum, 19 Ohm Maximum external resistor (not supplied), use the 'Which Resistor' button on this page.
Features: 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
DC Bus terminals with charge limit in circuit for DC supply or common bus energy saving applications.
'Safe Torque Off' function to SIL 3.
Programmable from a PC via 'DriveWindow' or using the ABB FlashDrop tool.
Input Current: 67A.
Input Voltage: 380V-480V Three Phase at 50/60Hz ±5%.
EMC Filters: to IEC/EN 61800-3 2nd Environment C3 (Industrial).
Mounting: Cubicle mount via 35mm DIN rail, or 4 x 5mm diameter holes at rear on 234mm x 191mm centres. Wall mount in a clean environment when fitted with the optional top cover and gland box linked below.
Ambient Temperature: Rated at 40°C.
Ventilation space above and below: 75mm.
Ventilation space at sides: 0mm (drives can be mounted side by side).
Heat Loss: 588W at maximum output.
Part Number: ACS355-03E-44A0-4, (3AUA0000058195) and is a direct replacement for the equivalent ACS350.
Download the ABB ACS355 Manual from the link below:-
