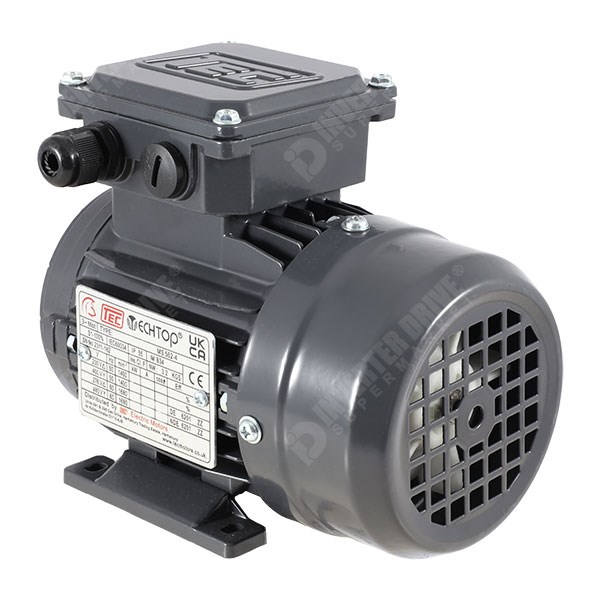

TEC IE1 0.12kW Aluminium Three Phase Motor 230V/400V 2 Pole 56 Frame B3

0.1223TECAB3 (56MB2-TECA B3)

Order Code: 24187
1 in stock (2+ normally 100 weeks)
Order by 3pm for next working day delivery*
£41.00
(excl. VAT)
£49.20
(inc. VAT )
Price break
per unit
1+
£41.00
10+
£37.31

Condition: New with Warranty
Brand: TEC Electric Motors, Range: TECA Three Phase Aluminium

TEC Electric - 0.12kW 3ph 2 Pole Foot Mounting (B3) 56 Frame AC Motor for 230V or 400V 3 phase supply. Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.

**Available from stock only**

Fixed mains supply output: 0.12kW (0.15HP) x 2730RPM at 230V or 400V x 50Hz 3ph.
Inverter Supply Output: 14:1 Speed Control range from 273RPM to 3822RPM for 5Hz to 70Hz control, with suitable de-rating at the lower speeds.

Full Load Current - 0.69A at 230V, or 0.4A at 400V.
Power Factor is 0.67 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links 'two at one side' for 400V 'Star' connection.

For 56 frame motors the feet (if supplied) can be removed or positioned opposite the terminal box. Consider a larger frame size or alternative mounting configuration (B14 Face or B5 Flange) if your application requires the terminal box to be positioned on either side of the motor.

98mm Wide x 195mm Long x 149mm high overall in its IP55 enclosure.
Foot mount on 5.8mm holes at 90mm wide x 71mm centres 36mm back from shaft shoulder.
Shaft is 9mm dia x 20mm with 3mm wide key.
Weight is 4.2kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.

Part number is - 0.1223TECAB3

For Variable Speed use:-
Part Time Output when Inverter powered is...
0.3Nm - 0.12kW (0.16HP) x 3822RPM at 70Hz
0.42Nm - 0.12kW (0.16HP) x 2730RPM at 50Hz
0.42Nm - 0.06kW (0.08HP) x 1365RPM at 25Hz
0.42Nm - 0.012kW (0.016HP) x 273RPM at 5Hz
Continuous Output when Inverter powered is...
0.3Nm - 0.12kW (0.16HP) x 3822RPM at 70Hz
0.42Nm - 0.12kW (0.16HP) x 2730RPM at 50Hz
0.36Nm - 0.051kW (0.068HP) x 1365RPM at 25Hz
0.21Nm - 0.006kW (0.008HP) x 273RPM at 5Hz

Download the full Manual and Dimensions from the links below:-
