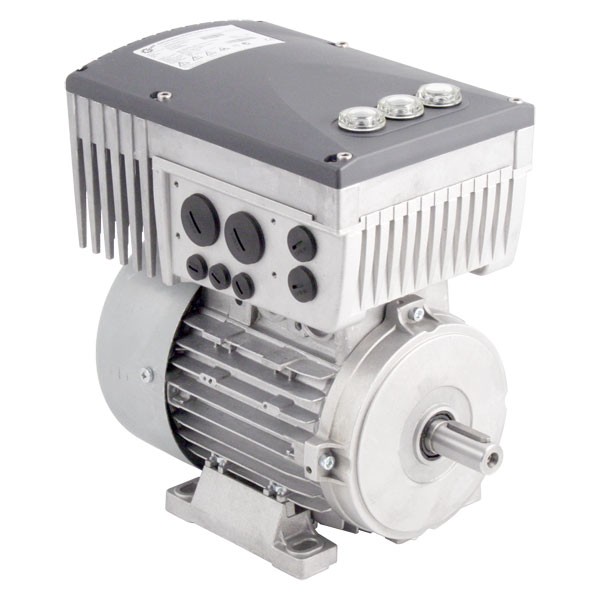

Nordac SK 205E Series 400V 3ph AC Frequency Inverter mounted on 0.55kW (0.75HP) 80 Frame 4 Pole Motor to 1.7A. Operates in VxF or Sensorless Vector control. Simple set-up and ready to run from its default settings for decentralized drive applications.
Inverter: Frame 1, Motor: SK80S/4.
Size: 160mm wide x 274.5mm high x 241mm length overall (excluding shaft). IP55.
Mounting: Foot mount on 9mm holes at 125mm wide x 100mm centres 50mm back from shaft shoulder.
Shaft: 19mm diameter x 40mm length with 6mm keyway.
Overload - 150% x 60 seconds, 200% x 3.5 seconds
Speed Control Range - 0Hz to 400Hz. 10:1 Speed Control range from 140RPM to 1400RPM, with suitable de-rating at the lower speeds.
Braking - To 200 Ohm minimum external resistor (not supplied) - use the 'Which Resistor' button on this page.
1 Analogue Input, 4 Digital Inputs, 1 Digital Output, RS232 and RS485 Interfaces.
Input Current - 1.6A (typical).
Input Voltage - 380-500V Three Phase -20%/+10% at 50-60Hz ±5%.
EMC Filters for the 2nd Environment (Industrial).
Full part number is - SK 205E-550-340-A (SK205E-550-340-A).
Download the Nord SK 200E Manual and Drawings from the links below:-
