Schneider ATV12 IP20 0.75kW 230V 1ph to 3ph AC Inverter Drive, C1 EMC


Order Code: 22480
Available to Order
Delivery 5-7 working days

List Price: £138.00

(excl. VAT)
(inc. VAT )
Price break
per unit

Condition: New with Warranty
Brand: Schneider, Range: Altivar 12

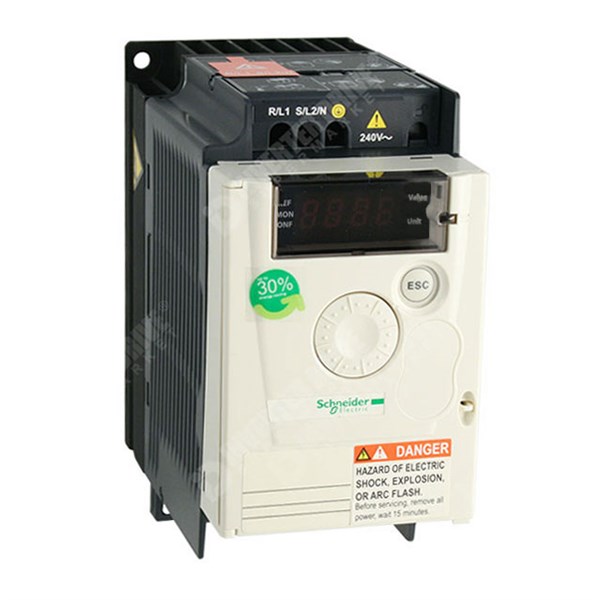

Schneider Altivar 12 (ATV12) series AC Inverter for 0.75kW (1HP) 230V 3 Ph motor in VxF or Sensorless Vector control to 4.2A. Converts fixed frequency single phase 230V input to variable frequency three phase 230V for a standard AC Induction motor.

Size 1C2 - 72mm Wide x 131.2mm Deep x 143mm High. IP20
Weight: 0.8kg.

Overload: 150% x 60 seconds, 165% x 2 seconds
Speed Control Range: 0-400Hz.
Braking: none (braking module optional).

1 x Analogue Input, 1 x Analogue Output, 4 Digital Inputs, 1 Digital Output, 1 Relay Contact set, RJ45 Modbus communication port, Front Mounted Potentiometer.
Input Current: 10.2A.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%
EMC Filters to EN61800-3 to the 1st Environment C1 (Domestic) for cable lengths up to 5m.
EMC Filters to EN61800-3 to the 2nd Environment C2 (Industrial) for cable lengths up to 10m.
Filters can be disabled using a jumper if required.

Cubicle mount.
Rated 40°C Ambient.
Ventilation space in front: 10mm.
Ventilation space above and below: 50mm.
Ventilation space at sides: 50mm (0mm with top vent cover removed).
Heat Loss at max output: 44W.
Mounting via 2 x 5mm diameter holes at rear on 60mm x 120mm centres.

Manufacturer part number is ATV12H075M2. Previously sold under the Telemecanique brand.
(Replaces ATV11HU18M2E)

Download the Schneider Electric Altivar 12 Manual and Quick Start Guide from the links below:-
