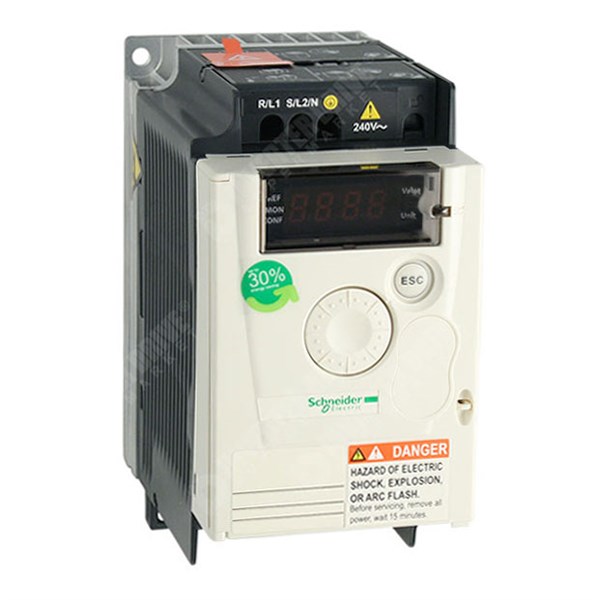

Schneider Altivar 12 0.37kW 115V 1ph to 230V 3ph AC Inverter Drive, No Filter

ATV12H037F1

Order Code: 22475
1 in stock (2+ normally 20 weeks)
Order by 3pm for next working day delivery*
£147.25
(excl. VAT)
£176.70
(inc. VAT )
Price break
per unit
1+
£147.25

Condition: New with Warranty
Brand: Schneider, Range: Altivar 12

Schneider Altivar 12 (ATV12) series AC Inverter for 0.37kW (0.5HP) 230V 3 Ph motor in VxF or Sensorless Vector control to 2.4A. Converts fixed frequency single phase 115V input to variable frequency three phase 230V for a standard AC Induction motor.

Size 1C2 - 72mm Wide x 121.2mm Deep x 143mm High. IP20
Weight: 0.8kg.

Overload: 150% x 60 seconds, 165% x 2 seconds
Speed Control Range: 0-400Hz.
Braking: none (braking module optional).

1 x Analogue Input, 1 x Analogue Output, 4 Digital Inputs, 1 Digital Output, 1 Relay Contact set, RJ45 Modbus communication port, Front Mounted Potentiometer.
Input Current: 11.4A.
Input Voltage: 100-120V Single Phase -15% +10% at 50-60Hz ±5%
EMC Filters: None

Wall mount in clean environment or cubicle mount.
Rated 40°C Ambient.
Ventilation space in front: 10mm.
Ventilation space above and below: 50mm.
Ventilation space at sides: 50mm (0mm with top vent cover removed).
Heat Loss at max output: 29W.
Mounting via 2 x 5mm diameter holes at rear on 60mm x 120mm centres.

Manufacturer part number is ATV12H037F1. Previously sold under the Telemecanique brand.

Download the Schneider Electric Altivar 12 Manual and Quick Start Guide from the links below:-
